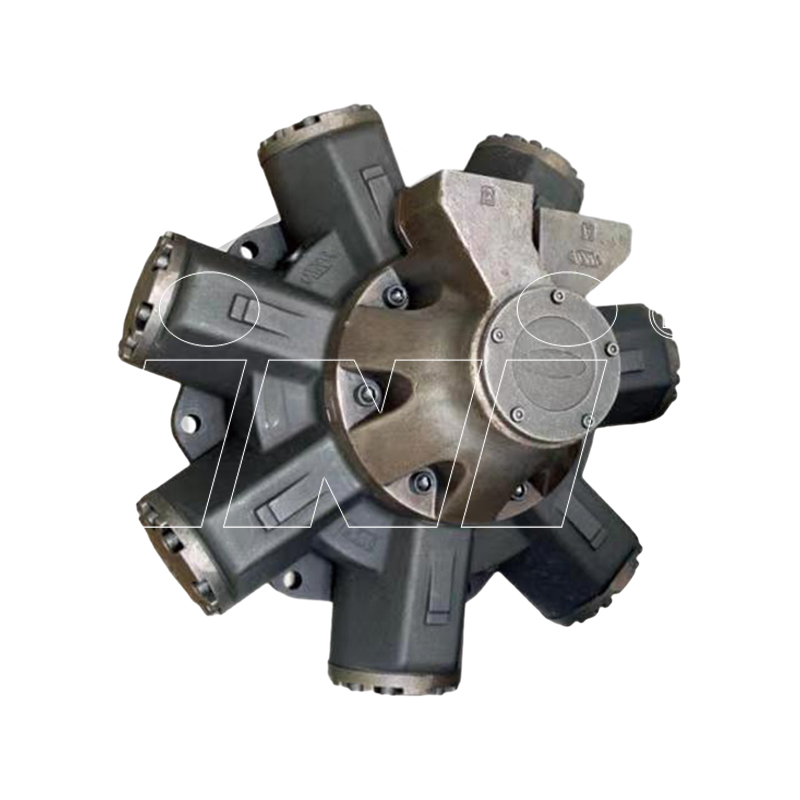

IMBP Series Radial Piston High Rpm Hydraulic Motor (Can Replace British Staffa Motor)

IMBP series hydraulic motor absorbs the advantages of crankshaft connecting rod hydraulic motor and plate distributor from both home and abroad, improving volumetric efficiency and grade of pressure. This series motor featured a compact and elegant figure, high volumetric efficiency and power, low noise, and good operating performance. Therefore, it has been widely applied to ship, construction, petroleum, mining, geological drilling, ship and deck machinery.
Adopt plate distributor, lower drain, and a high volumetric efficiency.
Static pressure balance structure between shaft joint and connecting rod, thereby, it smoothes the fiction joint and releases shaft pressure.
Because of the decrease in fiction work and heat loss, mechanical and starting efficiency increase, and the working force also improves.
The shaft of this series employs a fission structure to prolong motor life.
All the key parts of this series use special material and employ special heat treatment, therefore, efficiently prolonging motor life.
As the dimension and performance data of this series are the same as the HNB series of British Staffa Company, it could replace HMB.

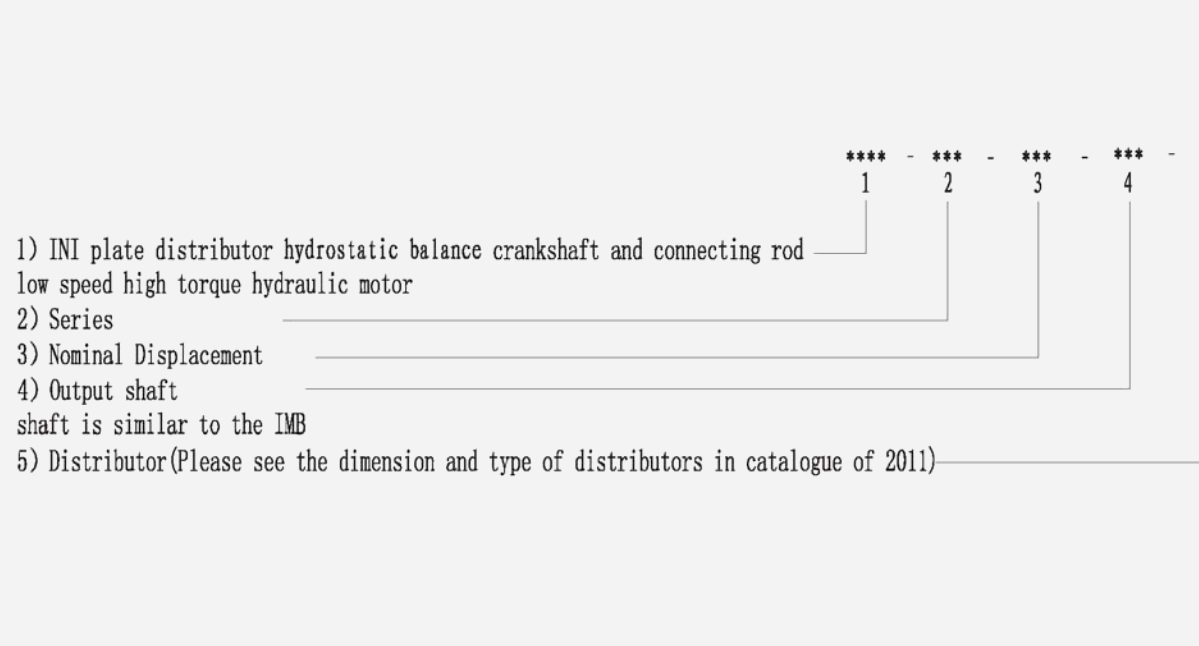

Ordering Code:

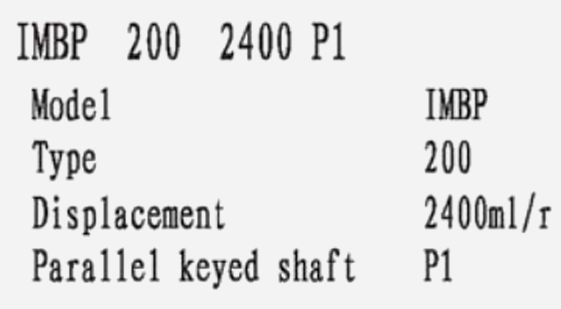

Example:

TYPE (ml/r)
THEORIC DISPLACEMENT
(MPa)
RATED PRESSURE
(MPa)
PEAK PRESSURE
(N.m)
RATED TORQUE
(N.m/MPa)
SPECIFIC TORQUE
(r/min)
MLX.SPED
(Kw)
RATED PW
(kg)
WEIGHT
IMBP200-2400 2432 23 29 8182 356 220 120 285
IMBP200-2800 2757 23 29 9276 403 195 120
IMBP200-3100 3080 23 29 10362 451 175 120
IMBP270-3300 3291 23 29 11072 481 160 130 420
IMBP270-3600 3575 23 29 12028 523 145 130
IMBP270-4000 3973 23 29 13367 581 130 130
IMBP270-4300 4313 23 29 14511 631 120 130
