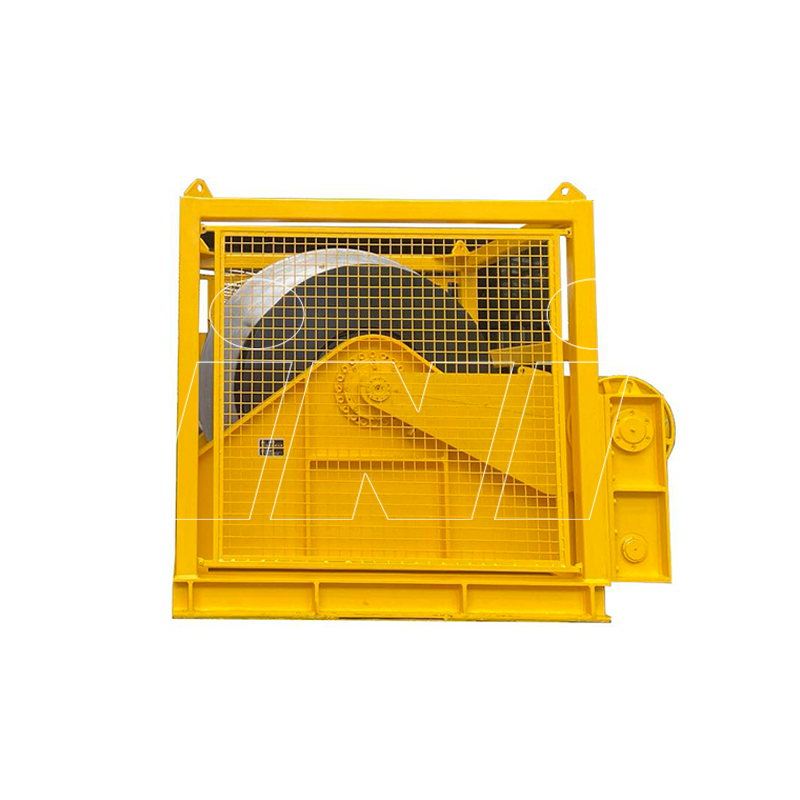

l*J---C series mooring winch are patent products of our company. They consist of valve blocks with the function of overload protection, hydraulic motor (electromotor with brake), planetary gearbox, belt brake, tooth clutch, drum capstan head, frame, and so on. Due to its fit with the valve block, not only simplified the design of the hydraulic system but also improved the reliability of drives. The winch series could have a CT function if fitted with a constant tension valve bl. The series also has high startup efficiency and working efficiency. In addition, compared with traditional mooring the total transmission efficiency of the series is improved by 6~10%and energy loss are lower because of the closed planetary

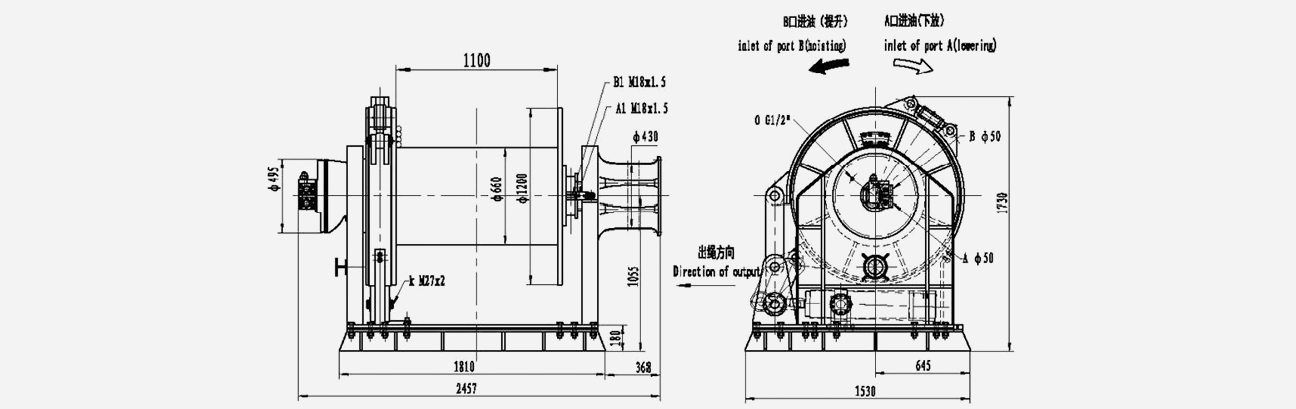

| Model | Drum load | Holding load | Nominal speed | Light-line speed | Creep speed | Total displacement | Rated pressure | Supply oil flow | Diameter of rope | Layer | Capacity of rope | D | L1 | L |
|
IYJ45-50-280-20-C-PDLY-JP |
50 |
150 |
15 |
30 |
0.5 |
6804 |
16 |
69 |
20 |
4 |
280 |
242 |
191 |
1810 |
|
IYJ45-65-265-22-C-PDLY-IP |
65 |
200 |
15 |
30 |
0.5 |
8792 |
16 |
89 |
22 |
4 |
265 |
242 |
191 |
1810 |
|
IYJ45-80-250-24-C-PDLX-IP |
80 |
240 |
15 |
30 |
0.5 |
11900 |
15 |
120 |
24 |
- |
250 |
304 |
216 |
1835 |
|
IYJ45-100-230-26-C-PDLX-JP |
100 |
270 |
15 |
30 |
0.5 |
15820 |
14.5 |
158 |
26 |
- |
230 |
304 |
216 |
1835 |
|
IYI45-125-220-28-C-PDLX-JP |
125 |
310 |
15 |
30 |
0.5 |
17444 |
16 |
174 |
28 |
- |
220 |
304 |
216 |
1835 |
|
IYJ45-150-200-30-C-PDLX-JP |
150 |
420 |
15 |
30 |
0.5 |
22176 |
15.6 |
219 |
30 |
- |
200 |
380 |
239 |
1858 |
|
IYJ56-160-330-32-C-PDLX-JP |
160 |
470 |
15 |
30 |
0.5 |
33180 |
15 |
252 |
32 |
4 |
330 |
- |
- |
- |
|
IYJ56-180-310-34-C-PDLX-JP |
180 |
520 |
13 |
30 |
0.5 |
37520 |
15 |
246 |
34 |
4 |
310 |
- |
- |
- |
|
IYJ56-200-290-36-C-PDLX-JP |
200 |
590 |
12 |
30 |
0.5 |
40936 |
15 |
248 |
36 |
4 |
290 |
- |
- |
- |
|
IYJ67-220-400-38-C-PDLX-JP |
220 |
630 |
12 |
20 |
0.5 |
50848 |
15 |
273 |
38 |
5 |
400 |
- |
- |
- |
|
IYJ67-250-390-40-C-PDLX-JP |
250 |
720 |
12 |
20 |
0.5 |
59556 |
15 |
320 |
40 |
5 |
390 |
- |
- |
- |
|
1YJ67-280-380-42-C-PDLZ-JP |
280 |
810 |
10 |
20 |
0.5 |
70364 |
14 |
314 |
42 |
5 |
380 |
- |
- |
- |
|
IYJ79-315-330-46-C-PDLX-JP |
315 |
940 |
10 |
20 |
0.5 |
79442 |
16 |
313 |
46 |
4 |
330 |
- |
- |
- |
|
IYJ79-400-310-50-C-PDLX-JP |
400 |
1080 |
10 |
20 |
0.5 |
94556 |
17 |
370 |
50 |
4 |
310 |
- |
- |
- |
|
IYJ79-500-300-52-C-PDLX-JP |
500 |
1350 |
10 |
20 |
0.5 |
94556 |
21 |
370 |
52 |
4 |
300 |
- |
- |
- |
