Product Description:

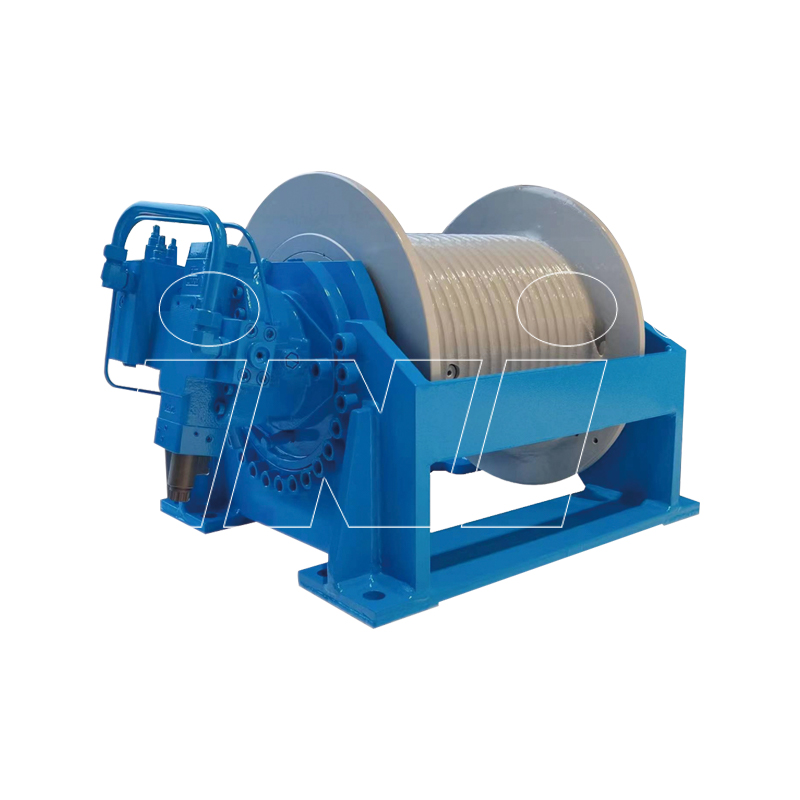

HW series winches for vehicles are patent products of our company. It is mainly composed of an axial piston motor, oil distributor or valve block, hydraulic normally closed multi-chip brake, Ultistage planetary reducer, normally closed pneumatic clutch, frame, drum, support shaft, etc. The oil distributor integrates a hydraulic balance valve, overload protection valve, shuttle valve, load and unloading valve, etc. Due to its fit with the valve block, not only simplified the design of the hydraulic system but also improved the reliability of drives. In addition, it also has the functions of measuring the tension, speed, capability of the drum, adjustable speed, manual rope with clutch, etc. It has the advantages of a compact structure, small size, lightweight, high-power density, beautiful appearance, etc. The tension of this series of products is 5Kn-500Kn, with complete specifications and diverse varieties. Therefore, the series has been widely applied to hoisting salvage vehicles, cross-country vehicles, military heavy trucks, and bulldozers. It can be used to rescue various vehicles damaged or involved in mud and also used to pull heavy objects and to save self. HW series winch for vehicles has been well old in China, it has also been recognized by major domestic special vehicle manufacturers.

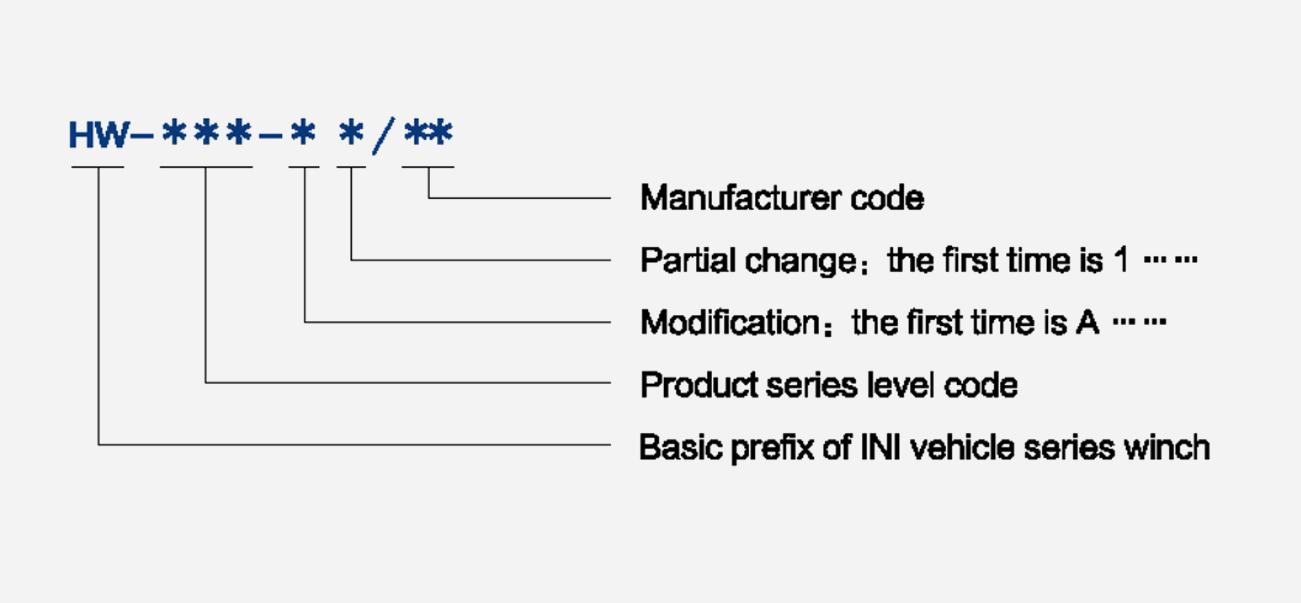

Options example:
| Serial code | First pull | First rope speed | Total displacement | Working pressure (Mpa) |
Supply oil flow (L/min) |
Diameter of rope (mm) |
Layer | Capacity of rope |

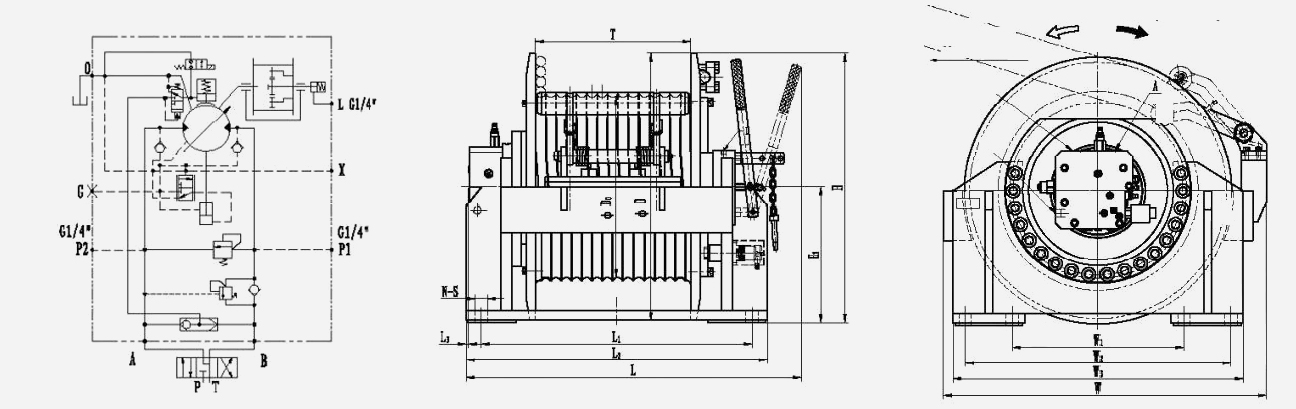

Gearbox ratio | Overall dimensions and oil port specifications | |||||||||||||||||||||
| Heavy load (KN) | Slight load (KN) |
Heavy load (KN) | Slight load (KN) |
Heavy load (KN) | Slight load (KN) |
Do |
D |
T |
L₁ |
L₂ |
L₃ |
L |
W1 |
W2 |
W3 |
W |
H1 |
H |
N |
S |
A、B |
0 |
|||||||||
|
HW100A |
100 |
- |
11 |
- |
7120.7 |
- |
21 |
90 |
16 |
2 |
45 |
137.2 |
295 |
386 |
378 |
636 |
688 |
5 |
693 |
217 |
331 |
433 |
503 |
200 |
393 |
8 |
φ26 |
G3/4" |
G3/8 |
||
|
HW150A |
150 |
50 |
10-12 |
23-27 |
12231.3 |
5596 |
17~25 |
115 |
22 |
4 |
104 |
139.9 |
370 |
555 |
431.3 |
670 |
728 |
31 |
854 |
340 |
544 |
605 |
649 |
282 |
559 |
8 |
φ26 |
G3/4 |
G1/2 |
||
|
HW200A |
200 |
30～50 |
6.2～8 |
17~28.5 |
14160 |
6488 |
17~25 |
110 |
22 |
4 |
110 |
162.2 |
370 |
555 |
431.3 |
670 |
728 |
131 |
859 |
340 |
544 |
605 |
669 |
297 |
559 |
8 |
φ29 |
M33x2 |
M18x1.5 |
||
|
HW250A |
250 |
- |
7.4 |
16.3 |
22769.6 |
10432.8 |
22 |
120 |
26 |
4 |
100 |
260 |
470 |
695 |
402 |
473 |
695 |
39 |
863 |
486 |
650 |
755 |
840 |
411 |
758 |
16 |
φ22 |
G3/4" |
G1/2 |
||
|
HW250B |
250 |
50 |
7.4 |
24.5 |
23005 |
6880 |
17~20 |
120 |
26 |
4 |
105 |
215 |
470 |
695 |
402 |
704 |
783 |
125 |
908 |
445 |
691 |
781 |
841 |
368 |
715 |
8 |
φ32 |
M33x2 |
M18x1.5 |
||
|
HW280A |
280 |
70 |
7 |
25 |
23424 |
6295 |
22-23 |
120 |
28 |
4 |
105 |
146.4 |
470 |
750 |
441 |
780 |
840 |
25 |
840 |
475 |
715 |
810 |
879 |
425 |
800 |
16 |
φ26 |
G3/4" |
G1/2 |
||
|
HW280B |
280 |
70 |
6 |
13 |
22769.6 |
10432.8 |
15~25 |
97 |
28 |
4 |
105 |
260 |
470 |
750 |
441 |
780 |
840 |
146 |
986 |
416 |
656 |
750 |
830 |
380 |
755 |
16 |
φ26 |
M33x2 |
M27x2 |
||
|
HW300A |
300 |
50 |
7 |
27.5 |
23424 |
5856 |
19~26 |
120 |
28 |
4 |
96 |
146.4 |
470 |
750 |
441 |
733 |
780 |
184 |
964 |
440 |
658 |
750 |
886 |
380 |
755 |
8 |
φ32 |
M33x2 |
M26x1.5 |
||
|
HW315A |
315 |
60 |
6.9 |
25.4 |
26857 |
7530 |
21~25 |
130 |
28 |
4 |
105 |
251 |
470 |
750 |
441 |
787 |
856 |
71 |
942 |
540 |
680 |
800 |
869 |
420 |
795 |
16 |
φ32 |
M33x2 |
M18x1.5 |
||
|
HW400A |
400 |
100 |
4.5 |
11.5 |
45920 |
17220 |
20~22 |
126 |
32 |
4 |
96 |
287 |
555 |
835 |
436 |
742 |
799 |
201 |
1000 |
605 |
829 |
899 |
946 |
423 |
840 |
16 |
φ32 |
M33x2 |
M27x2 |
||
|
HW450A |
450 |
150 |
4.5 |
7 |
43071.6 |
27610 |
15~25 |
117 |
34 |
5 |
100 |
251 |
555 |
963 |
357 |
780 |
860 |
146 |
1006 |
680 |
940 |
1023 |
1103 |
492 |
973 |
24 |
φ33 |
M27x2 |
G1/2" |
||
|
HW500A |
500 |
100 |
7.3 |
11.7 |
49249.2 |
31570 |
17-27 |
185 |
40 |
4 |
90 |
287 |
630 | 1030 |
412 |
885 |
955 |
237 |
1192 |
720 |
950 | 1090 | 1090 |
590 |
105 |
16 |
φ32 |
φ30 |
G1/2 |
||
