IMB Series Radial Hydrostatic Balance Hydraulic Motor (Can Replace British Staffa Motor)

● Higher pressure, higher speed, higher power.
● The hydrostatic balance is built between the con-rod and eccentric sets, solving the problem of the higher-power hydraulic motor of the shaft con-rod being overwhelmed by the roller, so this motor has higher pressure. higher speed, higher power.
● Using a special treatment process and hydrostatic balance between the con-rod and piston, reduce the friction loss in the load transmission, reduce the force between the piston and cylinder wall, and then reduce the friction loss between the piston and cylinder wall.
● The piston seal ring uses special structures to reduce friction and improve the volumetric efficiency.
● Using the hydrostatic balance shaft distributor, the distributor can rotary without connection, improve the volumetric efficiency, and reduce the noise and the resistance.
● Characteristics and data are similar to Staffa.
● Due to these advantages, it has been widely applied in all kinds of hydraulic transmission systems such as ship and deck machinery construction machinery and equipment、 plastic injection machines 、heavy metallurgical machinery. shape and characteristics data is similar to Staffa and HMB, so IMB can in a stand of imports.
Contact Us Download WhatsApp

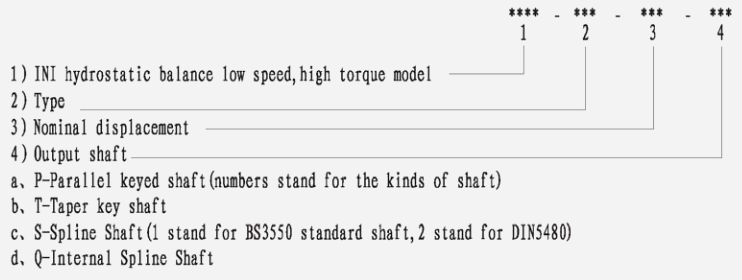

Ordering Code:

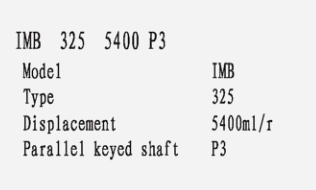

Example:
TYPE (ml/r)
THEORIC DISPLACEMENT		 (MPa)
RATED PRESSURE		 (MPa)
PEAK PRESSURE		 (N.m)
RATBD TORQUE		 (N.m/MPa)
SPECIFIC TORQUE		 (r/min)
MAX.SPEED		 (Kw)
RATED PW		 (kg)
WIGHT
IMB080-1000 988 23 29 3324 145 300 90 144
IMB080-1100 1088 23 29 3661 159 300 90
IMB080-1250 1237 23 29 4162 181 280 90
IMB100-1400 1385 23 29 4660 203 260 100 144
IMB100-1600 1630 23 29 5484 238 240 100
IMB125-1400 1459 23 29 4909 213 300 95 235
IMB125-1600 1621 23 29 5454 237 270 95
IMB125-1800 1864 23 29 6271 273 235 95
IMB125-2000 2027 23 29 6820 297 220 95
IMB200-2400 2432 23 29 8182 356 220 120 285
IMB200-2800 2757 23 29 9276 403 195 120
IMB200-3100 3080 23 29 10362 451 175 120
IMB270-3300 3291 23 29 11072 481 160 130 420
IMB270-3600 3575 23 29 12028 523 145 130
IMB270-4000 3973 23 29 13367 581 130 130
IMB270-4300 4313 23 29 14511 631 120 130
IMB325-4500 4538 23 29 15268 664 115 130 420
IMB325-5000 4992 23 29 16795 730 105 130
IMB325-5400 5310 23 29 17865 777 100 130
IMB400-5500 5510 23 29 18135 788 120 175 495
IMB400-6000 5996 23 29 19735 858 120 175
IMB400-6500 6483 23 29 21337 928 120 175
IMB400-6800 6807 23 29 22404 974 120 175
