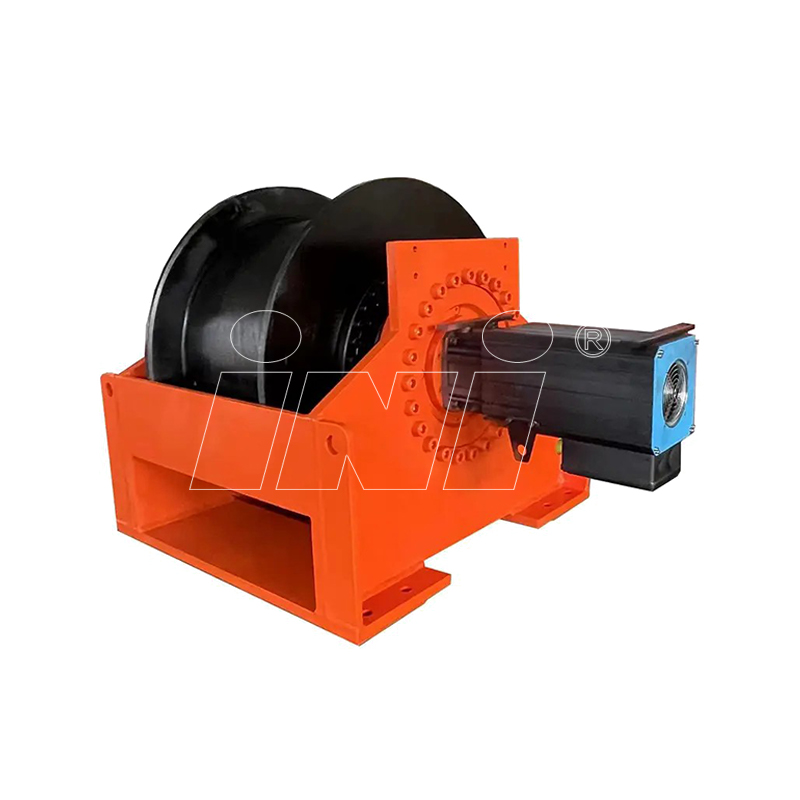

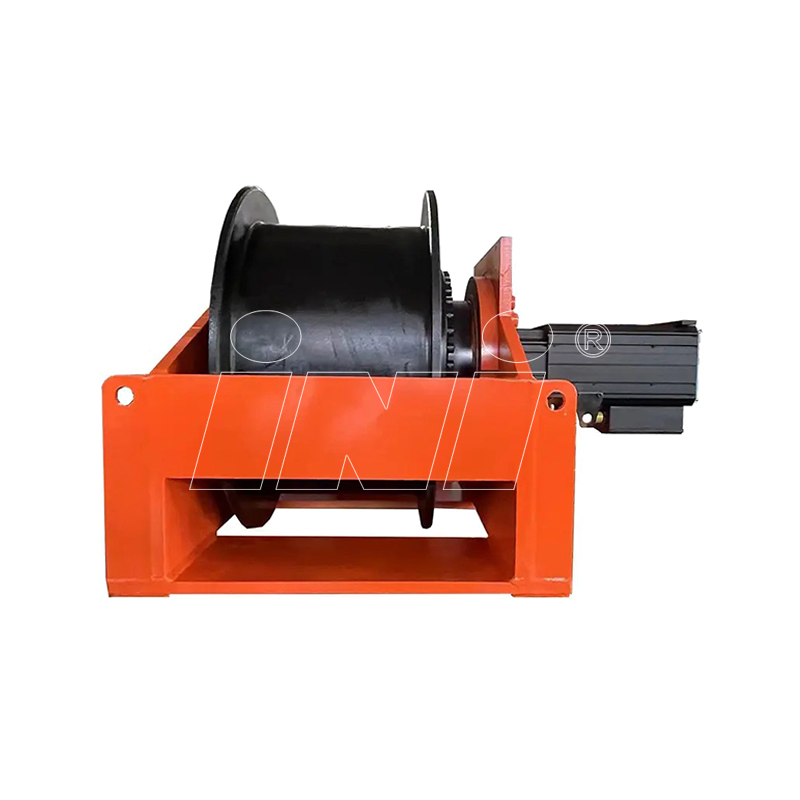

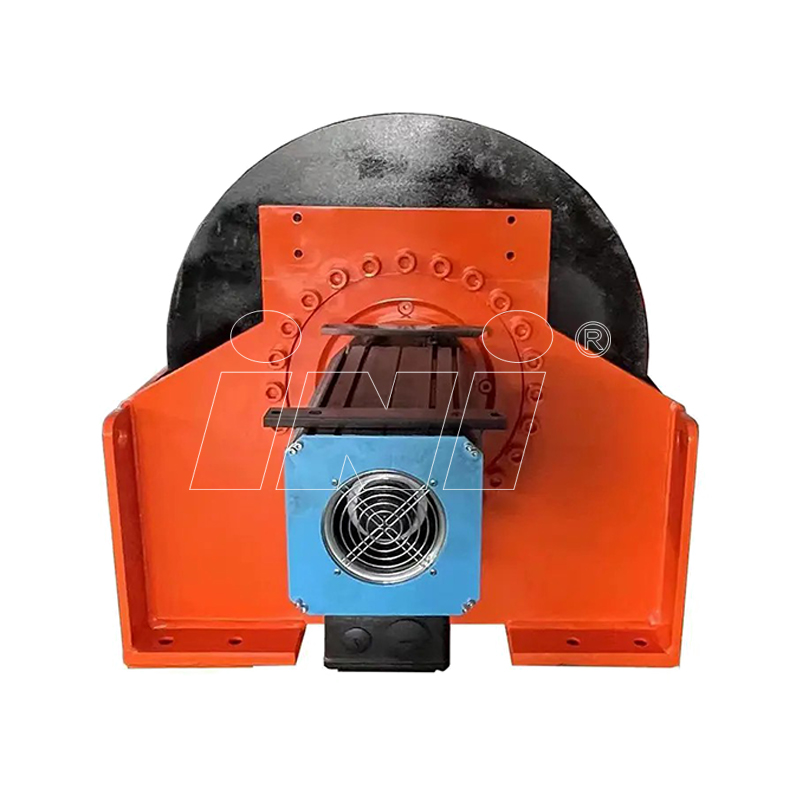

Electric Winch - IDJ Series features compact structure, durability, high reliability, and energy efficiency. We have compiled selections of various electric winches we have designed for diverse applications.
Model Options：
Options Example：
IDJ23-10-30-14 represents that the electric winch adopts two stages planetary gearbox, the modules of the gearbox are2.5 and 3 respectively, the single line pull on 1st layer is 10kN, the drum capacity is 30m, and the rope diameter is 14mm.

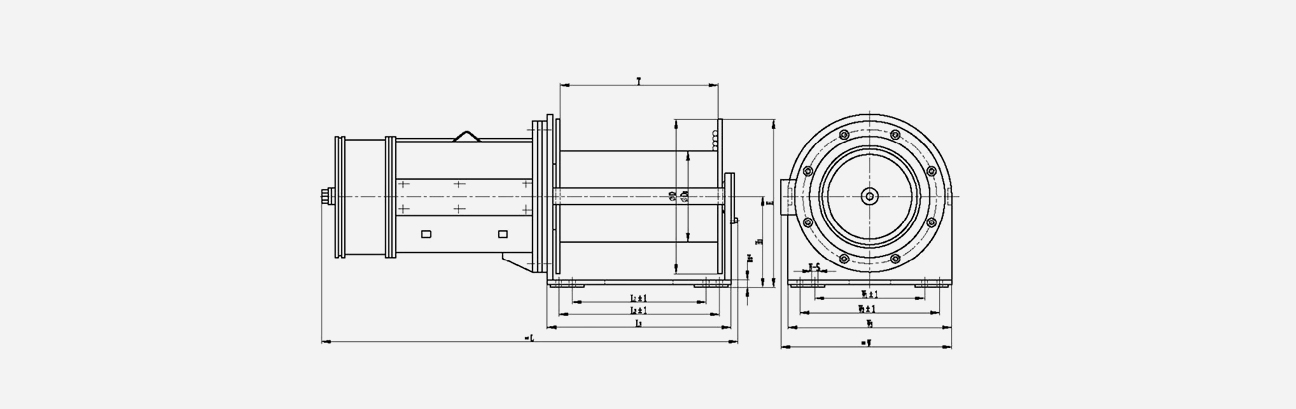

| Main specification | Overall dimension | ||||||||||||||||||||||||||
| Serial code | Model | The 1st layer | Diameter of rope | Layer | Capacity of rope | Model of electromotor | Parameter of electromotor | Ratio | Power | D0 | D | T | L1 | L2 | L3 | L | W1 | W2 | W3 | W | H2 | H1 | H | N | S | ||
| Pull | Spade | Volt | Frequency | ||||||||||||||||||||||||
| IDJ23 | IDJ23-10-130-14 | 10 | 15 | 14 | 4 | 130 | YZ-132S-6-H | 380 | 50 | 49 | 3.7 | 270 | 460 | 470 | - | 438 | 548 | 1242 | - | 380 | 490 | 510 | 22 | 270 | 500 | 4 | φ26 |
| IDJ23-15-130-14 | 15 | 15 | 14 | 4 | 130 | YZ-132M-6-H | 380 | 50 | 49 | 5.5 | |||||||||||||||||
| IDJ23-20-130-14 | 20 | 18 | 14 | 4 | 130 | Y7-160S-6-H | 380 | 50 | 49 | 7.5 | |||||||||||||||||
| IDJ23-30-130-14 | 30 | 16 | 14 | 4 | 130 | Y7-160L-6-H | 380 | 50 | 49 | 11 | |||||||||||||||||
| IDJ233 | IDJ233-35-171-16 | 35 | 10.8 | 16 | 4 | 171 | YZ-132M2-4-H | 380 | 50 | 125 | 7.5 | 300 | 520 | 635 | - | 805 | 865 | 1285 | - | 420 | 520 | 560 | 26 | 275 | 535 | 4 | φ26 |
| IDI233-40-171-16 | 40 | 10.8/3.8 | 16 | 4 | 171 | JZ2-E-33-4/12 | 380 | 50 | 125 | 8.5/3.5 | |||||||||||||||||
| IDI233-48-160-18 | 48 | 11.5 | 18 | 4 | 160 | YEJ160M-4-B5 | 380 | 50 | 100 | 11 | |||||||||||||||||
| IDJ234 | IDJ234-60-90-18 | 60 | 9 | 18 | 3 | 90 | YEJ160M-4-B5 | 380 | 50 | 192.5 | 11 | 380 | 532 | 436 | - | 624 | 704 | 1180 | - | 460 | 540 | 572 | 30 | 300 | 566 | 4 | φ26 |
| IDT35.55.5 | 10J335.55.5-150-35-24 | 150 | 6.2 | 24 | 1 | 35 | ISMG1-22D15D | 380 | 100 | 598.3 | 18.1 | 752 | 952 | 446 | - | 906 | 986 | 1419 | 620 | 870 | 1000 | - | 34 | 565 | 1041 | 8 | φ26 |
| IDJ335.55.5-250-35-28 | 250 | 6.2 | 28 | 1 | 35 | ISMG1-30D15CD | 380 | 100 | 598.3 | 30.6 | 760 | 952 | 446 | 600 | 906 | 986 | 1446 | 620 | 870 | 1000 | - | 34 | 495 | 971 | 16 | φ26 | |
| IDJ335.55.9 | IDJ35.55.5-170-200-36 | 170 | 58 | 36 | 3 | 200 | TBZYC-200 | 660/1140 | 150 | 73.1 | 200 | 870 | 1200 | 816 | 740 | 1140 | 1220 | 2023 | 840 | 1200 | 1280 | 39 | 653 | 1253 | 16 | φ32 | |
| IDJ35.55.5-220-200-36 | 220 | 44.5 | 36 | 3 | 200 | TBZVC-200 | 660/1140 | 150 | 95.8 | 200 | 870 | 1200 | 816 | 740 | 1140 | 1220 | 2023 | 840 | 1200 | 1280 | - | 39 | 653 | 1253 | 16 | φ32 | |
| IDJ46 | IDJ46-180-43-28 | 50-180 | 122-5 | 28 | 1 | 43 | YVF2-315L-6-H | 380 | 50 | 32.04 | 132 | 595 | 655 | 649.9 | - | 1020 | 1080 | 2369 | 450 | 830 | 1310 | - | 40 | 435 | 791.5 | 16 | φ32 |
