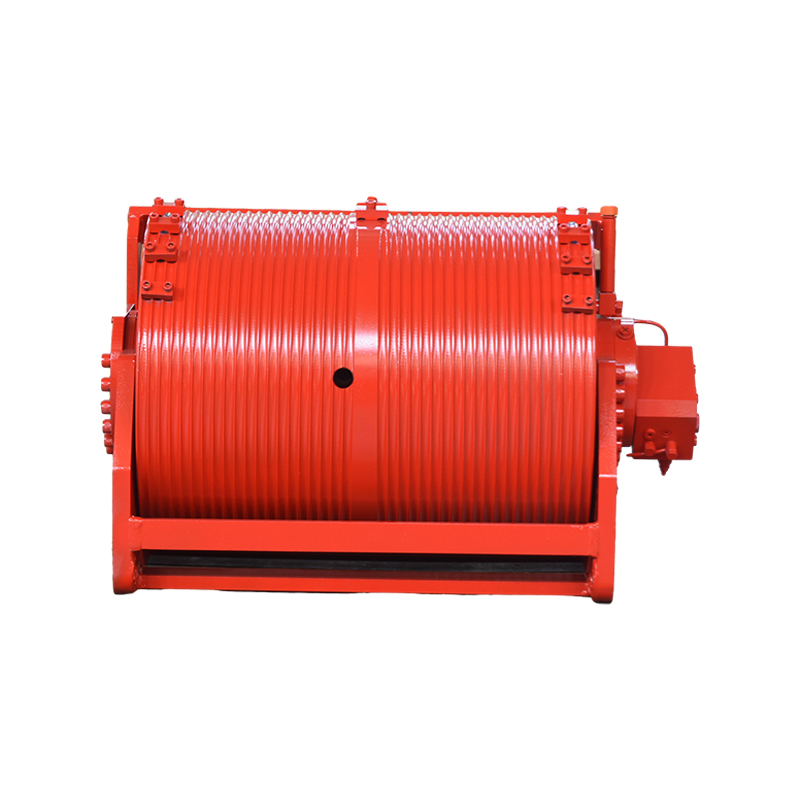

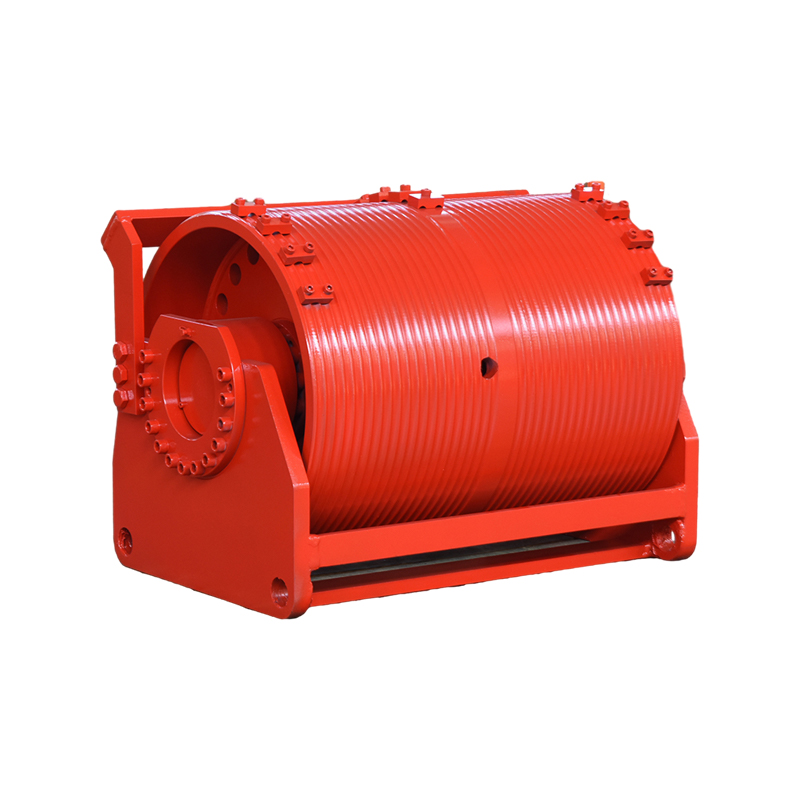

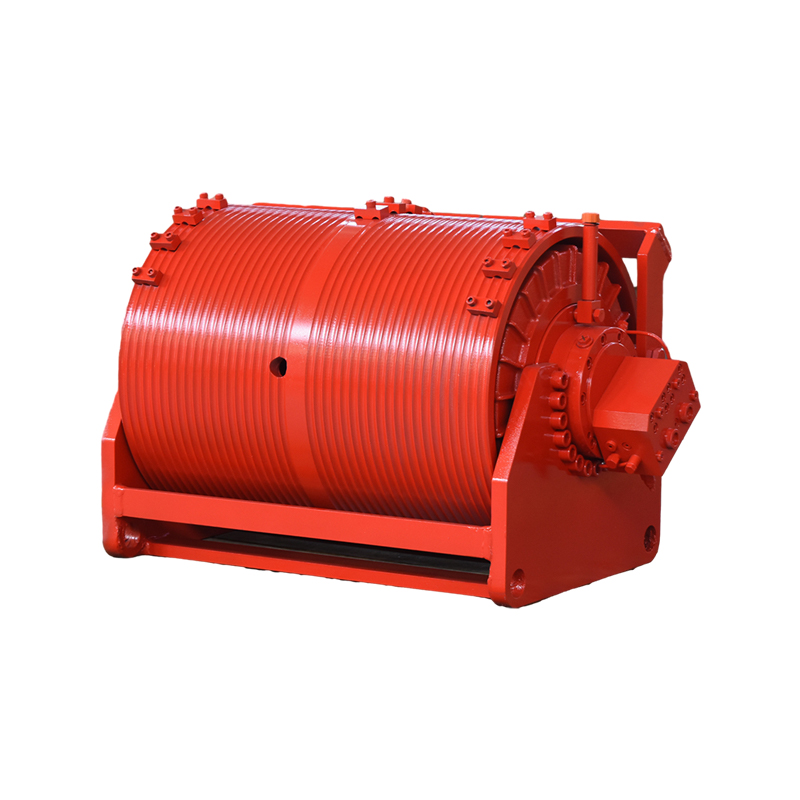

IYJ-ZZ Series Manned Hydraulic Winch with Dual Brakes is independently developed by our company, has applied for a number of inventions and utility model patents, and obtained the "Made in Zhejiang "brand certification. They mainly consist of an axial piston hydraulic motor, two Z-type hydraulic multi-disc brakes, and a C-type or KC-type planetary gearbox, clutch, drum, support shaft, and frame. Hydraulic motors can choose different distributors according to the working conditions, such as counterbalance valve overload valve、shutle valve speed control directional valve, and other functions.
This series of winches features a compact and elegant figure, small size and lightweight, high efficiency and power, low noise, and good operating performance, and the two single brakes can give the winches good safety. This

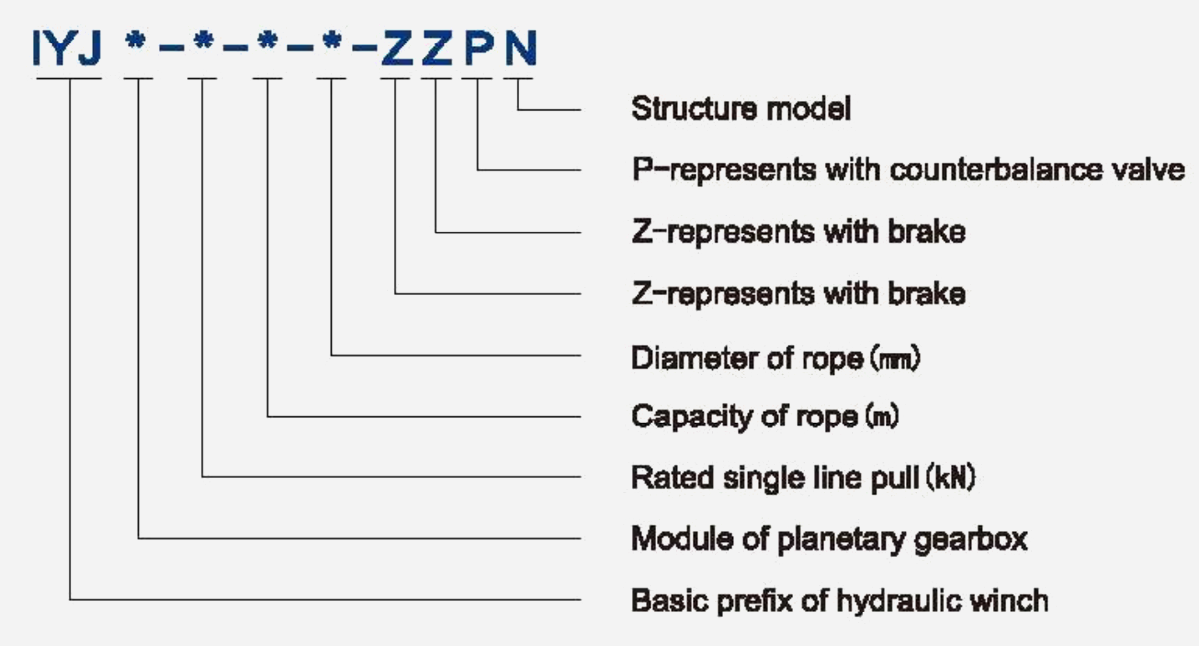

Options Example:
|
Working Condition |
Carry Cargo |
Carry People |
|
Rope Layer |
2 |
2 |
|
The 1st Layer Rope Pull (KN) |
13 |
6.5 |
|
The 1st Layer Rope Speed (m/min) |
32 |
32 |
|
Total Displacement (ml/r) |
556 |
556 |
|
System Rated Pressure (Bar) |
180 |
90 |
|
Pomp Supply Oil Flow (L/min) |
32 |
|
|
Rope Diameter(mm) |
10 |
|
|
Drum Capacity(m) |
27 |
|
|
Hydraulic Motor Model |
IAM18 |
|
|
Gearbox Model (Ratio) |
KC22(i=30.89) |
|
|
Static Brake Torque of Motor(Nm) |
600 |
|
|
Static Brake Torque of drum(Nm) |
3100 |
|
|
Working Condition |
Carry Cargo |
Carry People |
|
Rope Layer |
3 |
3 |
|
The 1st Layer Rope Pull (KN) |
13 |
6.5 |
|
The 1st Layer Rope Speed (m/min) |
30 |
30 |
|
Total Displacement (ml/r) |
810 |
810 |
|
System Rated Pressure (Bar) |
150 |
75 |
|
Pomp Supply Oil Flow (L/min) |
43 |
|
|
Rope Diameter(mm) |
11 |
|
|
Drum Capacity(m) |
70 |
|
|
Hydraulic Motor Model |
IAM18 |
|
|
Gearbox Model (Ratio) |
KC22(i=45) |
|
|
Static Brake Torque of Motor(Nm) |
600 |
|
|
Static Brake Torque of drum(Nm) |
3100 |
|
|
Working Condition |
Carry Cargo |
Carry People |
|
Rope Layer |
1 |
1 |
|
The 1st Layer Rope Pull (KN) |
5 |
2.5 |
|
The 1st Layer Rope Speed (m/min) |
72 |
72 |
|
Total Displacement (ml/r) |
954 |
954 |
|
System Rated Pressure (Bar) |
100 |
50 |
|
Pomp Supply Oil Flow (L/min) |
61 |
|
|
Rope Diameter(mm) |
8 |
|
|
Drum Capacity(m) |
60 |
|
|
Hydraulic Motor Model |
IAM52 |
|
|
Gearbox Model (Ratio) |
KC33(i=18.38) |
|
|
Static Brake Torque of Motor(Nm) |
400 |
|
|
Static Brake Torque of drum(Nm) |
9500 |
|
|
Working Condition |
Carry Cargo |
Carry People |
|
Rope Layer |
1 |
1 |
|
The 1st Layer Rope Pull (KN) |
7 |
3.5 |
|
The 1st Layer Rope Speed (m/min) |
74 |
74 |
|
Total Displacement (ml/r) |
954 |
954 |
|
System Rated Pressure (Bar) |
160 |
80 |
|
Pomp Supply Oil Flow (L/min) |
62 |
|
|
Rope Diameter(mm) |
8 |
|
|
Drum Capacity(m) |
70 |
|
|
Hydraulic Motor Model |
IAM52 |
|
|
Gearbox Model (Ratio) |
KC22(i=18.38) |
|
|
Static Brake Torque of Motor(Nm) |
400 |
|
|
Static Brake Torque of drum(Nm) |
9500 |
|
