INM Series Radial Piston Hydraulic Motor (Replaceable Italy GM series motor) Custom

Home / Products / Hydraulic Motor / INM Series Radial Piston Hydraulic Motor / INM Series Radial Piston Hydraulic Motor (Replaceable Italy GM series motor)
  • INM Series Radial Piston Hydraulic Motor (Replaceable Italy GM series motor)
  • INM Series Radial Piston Hydraulic Motor (Replaceable Italy GM series motor)
  • INM Series Radial Piston Hydraulic Motor (Replaceable Italy GM series motor)
  • INM Series Radial Piston Hydraulic Motor (Replaceable Italy GM series motor)

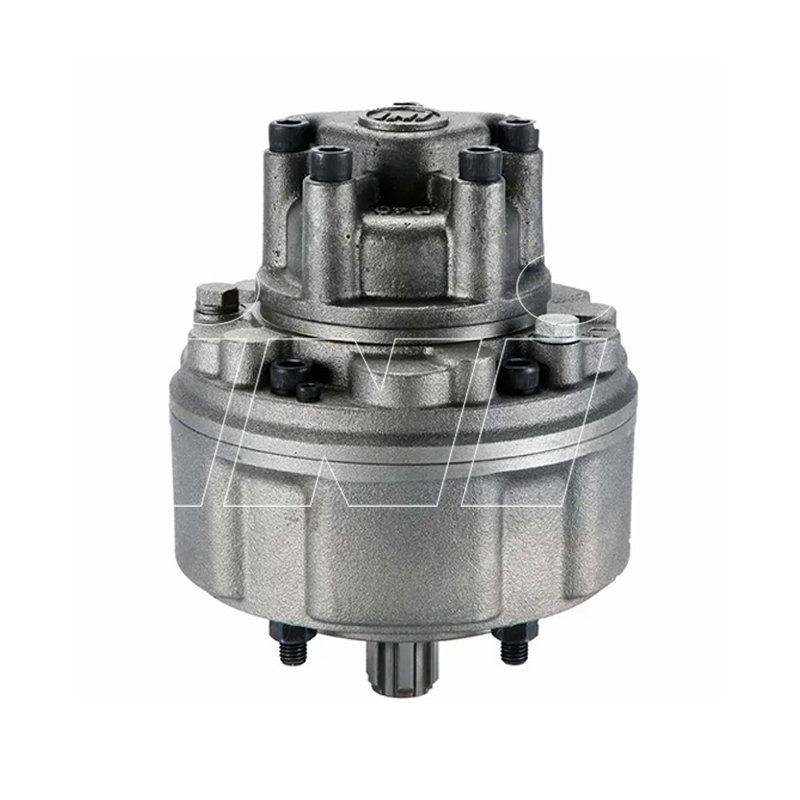

INM Series Radial Piston Hydraulic Motor (Replaceable Italy GM series motor)

INM series hydraulic motors are the company's collection of many years of production practice experience, based on the Italian technology design improvement, with utility model patent intellectual property rights, so that the shell strength of INM series hydraulic motor increased, bearing capacity of internal dynamic components and anti-pollution ability enhanced. This feature gives the motors a high continuous power range. Due to the high mechanical efficiency and volumetric efficiency, while reducing the internal unit load, heat generation and the associated negative effects are reduced. Its main features are as follows:
1) lt has high mechanical efficiency and high starting torque (mechanical efficiency above
0.92 when starting).
2) Good sealing performance, little leakage, with a high volumetric efficiency (up to 0.99).
3) Low speed stability, and high reliability.
4) It can be operated under pump conditions, when the oil inlet is closed, the motor can be operated under free wheel conditions (when the oil pressure is needed for pump conditions, which can improve the reliability of work).
5) Long lifetime, low noise, the drive shaft allows radial load, reversible rotation direction.
Due to above advantages, it has been widely applied in all kinds of hydraulic transmission systems such as plastic injection machines, ship and deck machinery, construction machinery and equipment, hoist and transport vehicles, heavy metallurgical machinery, petroleum and mine machine, light industry equipment, lath, light industry equipment and drilling machine, etc. In particular, it can be well available in driving screw rod of injection machine, hoisting winches and capstan, and driving various slew drives.
Contact Us Download WhatsApp

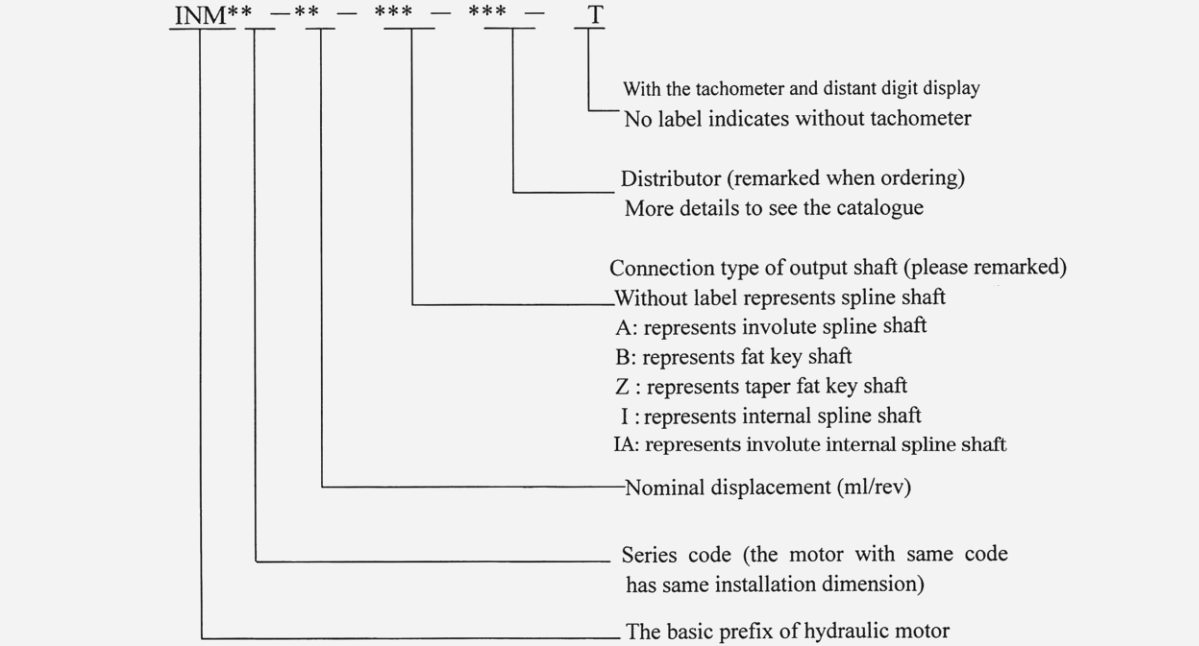

Model options:

Options example:
INM2-400BD31 represents that the motor is the 2 series unit of INM hydraulic motor. The nominal displacement is 400ml/rev, the output shaft is a flat key shaft, and the distributor model is D31 without a tachometer. Please fill in the complete code options when ordering. If there are any specific requests, please note in detail in the delivery contract or contact our company.

TYPE (ml/r)
THEORIC DISPLACEMENT		 (MPa)
RATED PRESSURE		 (MPa)
PEAK PRESSURE		 (N·m)
RATED TORQUE		 (N·m/Mpa)
SPECIFIC TORQUE		 (r/min) (kg)
WEIGHT
CONT SPEED Max.SPEED
INM05-60 59 25 45 235 9.4 1~700 1000 22
INM05-75 74 25 42.5 295 11.8 1~700 1000
INM05-90 86 25 37.5 343 13.7 1~700 1000
INM05-110 115 25 40 458 18.3 1~650 900
INM05-130 129 25 37.5 513 20.5 1~650 900
INM05-150 151 25 32.5 600 24 1~650 900
INM05-170 166 25 32.5 660 26.4 1~600 800
INM05-200 191 25 28 760 30.4 1~600 800
INM1-100 99 25 42.5 385 15.4 1~550 1000 31
INM1-150 154 25 40 600 24 1~550 1000
INM1-175 172 25 37.5 670 26.8 1~550 900
INM1-200 201 25 35 785 31.4 1~550 800
INM1-250 243 25 35 950 38 1~450 700
INM1-300 290 25 30 1130 45.2 1~350 650
INM1-320 314 25 28 1225 49 1~350 600
INM1-350 340 25 28 1327 53 1~300 600
INM2-200 192 25 42.5 750 30 0.7~550 800 51
INM2-250 251 25 42.5 980 39.2 0.7~550 800
INM2-300 304 25 40 1188 47.5 0.7~500 750
INM2-350 347 25 37.5 1355 54.2 0.7~500 750
INM2-420 425 25 35 1658 66.3 0.7~450 750
INM2-500 493 25 35 1923 76.9 0.7~450 700
INM2-600 565 25 30 2208 88.3 0.7~450 700
INM2-630 623 25 28 2433 97.3 0.7~400 650
INM3-425 426 25 42.5 1660 66.4 0.5~500 650 87
INM3-500 486 25 42.5 1895 75.8 0.5~450 600
INM3-600 595 25 40 2320 92.8 0.5~450 575
INM3-700 690 25 35 2700 108 0.5~400 500
INM3-800 792 25 35 3100 124 0.5~400 500
INM3-900 873 25 35 3400 136 0.5~350 400
INM3-1000 987 25 28 3850 154 0.5~300 350
INM4-600 616 25 40 2403 96.1 0.4~400 550 120
INM4-800 793 25 40 3100 124 0.4~350 550
INM4-900 904 25 37.5 3525 141 0.4~325 450
INM4-1000 1022 25 35 4000 160 0.4~300 400
INM4-1100 1116 25 35 4350 174 0.4~275 400
INM4-1300 1316 25 28 5125 205 0.4~225 350
INM5-800 807 25 42.5 3150 126 0.3~325 450
INM5-1000 1039 25 42.5 4050 162 0.3~300 450 175
INM5-1200 1185 25 40 4625 185 0.3~300 400
INM5-1300 1340 25 40 5225 209 0.3~300 400
INM5-1450 1462 25 37.5 5700 228 0.3~275 350
INM5-1600 1634 25 37.5 6350 254 0.3~250 300
INM5-1800 1816 25 35 7075 283 0.3~250 300
INM5-2000 2007 25 35 7825 313 0.3~200 250
INM6-1700 1690 25 45 6600 264 0.2~250 400 275
INM6-2100 2127 25 40 8300 332 0.2~225 350
INM6-2500 2513 25 35 9800 392 0.2~200 300
INM6-3000 3041 25 30 11875 475 0.2~175 250
INM7-1200 1214 25 30 4125 165 0.2~325 380 310
INM7-2000 2007 25 35 7975 319 0.2~350 450
INM7-2500 2526 25 35 10050 402 0.2~300 350
INM7-3000 2985 25 35 11877 475 0.2~250 300
INM7-3300 3290 25 35 13075 523 0.2~220 275
INM7-3600 3611 25 32 14350 574 0.2~200 250
INM7-4300 4298 25 30 17100 684 0.2~175 225
