IYJ Series Hydraulic Winch

The IYJ hydraulic winch series uses the patent technique of our company and consists of a variety of valve blocks with the function of braking and single counterbalance valve, high-speed hydraulic motor, Z type brake, KC type or GC type planetary gearbox, drum, frame and clutch. The user only needs to provide a hydraulic power pack and directional valve. Due to the winches fitted with diversified valve blocks, it not only simplified the hydraulic system but also improved the reliability of the winches. In addition, the winches feature a high efficiency and power, low noise and energy consumption, and have a compact figure and good economic value. Therefore, the series have been widely applied to construction, petroleum, mining, geological drilling,
and ship and deck machinery. IYJ series hydraulic winches have been well sold in China, and also have been exported to the Middle East, south-east Asia, India, Korea, Russia, Australia, the US, the Netherlands and so on.
Contact Us Download WhatsApp

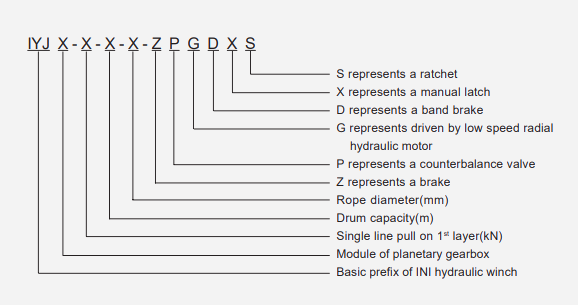

Model Options

Options Example
IYJ334-75-88-22-ZPG represents that the hydraulic winch adopts a three-stage planetary gearbox and that the modules of the gearbox are 3,3 and 4 respectively. The rated single pull on 1st layer is 75kN, the drum capacity is 88, and the rope diameter is 22 mm. the winch is fitted with a brake, and counterbalance valve, and is driven by a high speed axial hydraulic motor.
Recommended Products

Products provided by famous enterprises are deeply trusted by users.

INI Hydraulic Co., Ltd.

  • 27+

    Years Industry Experience

  • 150000+

    Factory Area

  • 450+

    Skillful Employees

  • 18+

    Advanced Production Line

INI Hydraulic Co., Ltd. has specialized in designing and manufacturing hydraulic winches, hydraulic motors and planetary gearboxes for more than twenty years. We are one of the professional China IYJ Series Hydraulic Winch Manufacturers and IYJ Series Hydraulic Winch Suppliers. Customizing to optimize customers’ ingenious equipment designs is our way to stay alive robustly in the market. Over 26 years, driven by the commitment of always innovating to satisfy customers’ needs, we have developed a wide range of product lines based on our self-developed technologies. The wide spectrum of products, each correlating intimately, contains hydraulic and electric winches, planetary gearboxes, slewing drives, transmission drives, hydraulic motors, pumps and hydraulic systems.

The reliability of our products has been proven strongly in diverse applications, including not limiting industrial machinery, construction machinery, ship & deck machinery, off-shore equipment, mining and metallurgical machinery.

Besides, our product quality has been approved by multiple worldwide renowned certificate bodies. The certifications, that our products have obtained, include EC-Type Examination Certificate, BV MODE, DNV GL Certificate, EC Attestation of Conformity, Certificate of Type Approval for Marine Product and Lloyd’s Register Quality Assurance. So far, besides China, our domestic market, we have widely exported our products to the United States, Germany, the Netherlands, Australia, Russia, Turkey, Singapore, Japan, South Korea, Malaysia, Vietnam, India and Iran. Our logistics and after-sales services cover the whole world promptly and reliably for our customers’ deep interests.
