Ditch Boat Winch

YJ-N series integrated hydraulic winches are independently developed by our company, have applied for a number of inventions and utility model patents, and obtained the "Made in Zhejiang" brand certification. They mainly consist of axial piston hydraulic motor, Z-type hydraulic multi-disc brake, and C-type or KC-type planetary gearbox, clutch, drum, support shaft, and frame. hydraulic motors can choose different distributors according to the working conditions, such as counterbalance valve overload valve shuttle valve speed control directional valve, and other functions. This series of winches featured compact and elegant figures, small size and lightweight, high efficiency and power, low noise, and good operating performance. Therefore, the series of hydraulic winches have been widely used in mobile cranes, vehicle cranes, aerial platforms, tracked vehicles, and so on. IYJ series integrated hydraulic winches have been well sold in China companies such as SANY, and also have been exported to the USA, Japan, Australia, Russia, Austria, Netherlands, Indonesia, Korea, and other areas in the world.



Contact Us Download WhatsApp

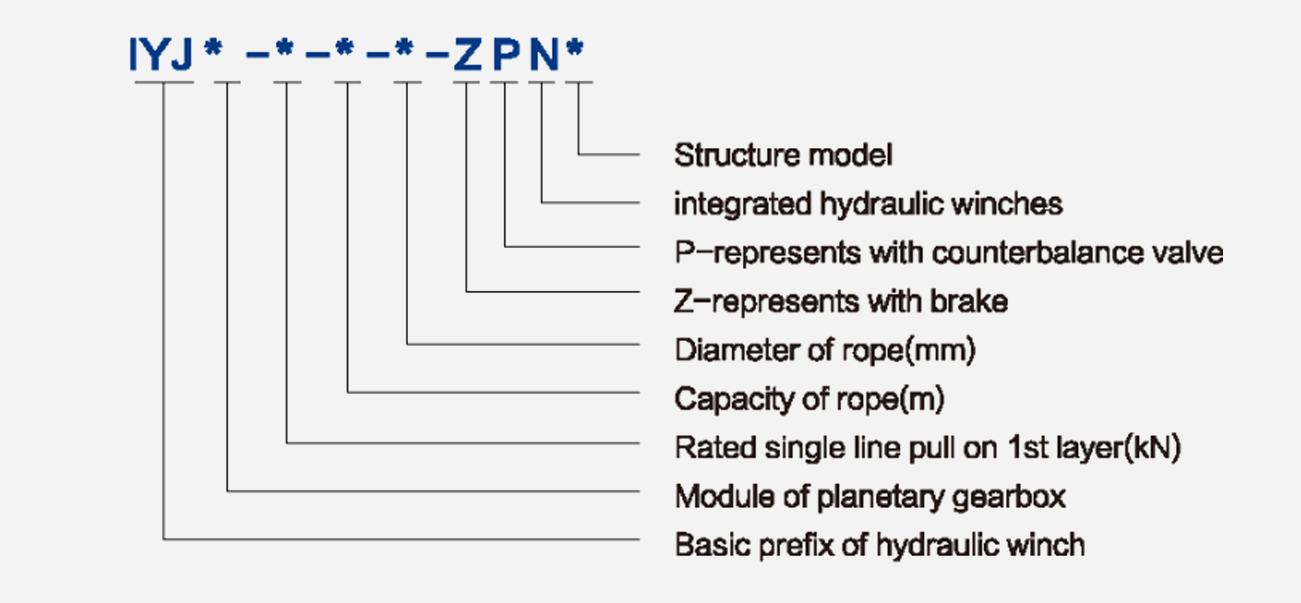

Model Options:Options Example:
IYJ22-20-55-10-ZPND represents that the hydraulic winch adopts two levels planetary gearbox, and the modules of the gearbox are 2 and 2 respectively, the rated single pull on 1 layer is 20KN, drum capacity is 55m, rope diameter is 10mm, single speed integrated hydraulic winch with brake and balance valve.

Serial code

 The 1st Layer Pull The 1st Layer Rope Speed Displacement Working pressure Supply oil flow
(L/min)		 Diameter of rope
(mm)		 Layer Capacity
of rope 		 Gearbox ratio

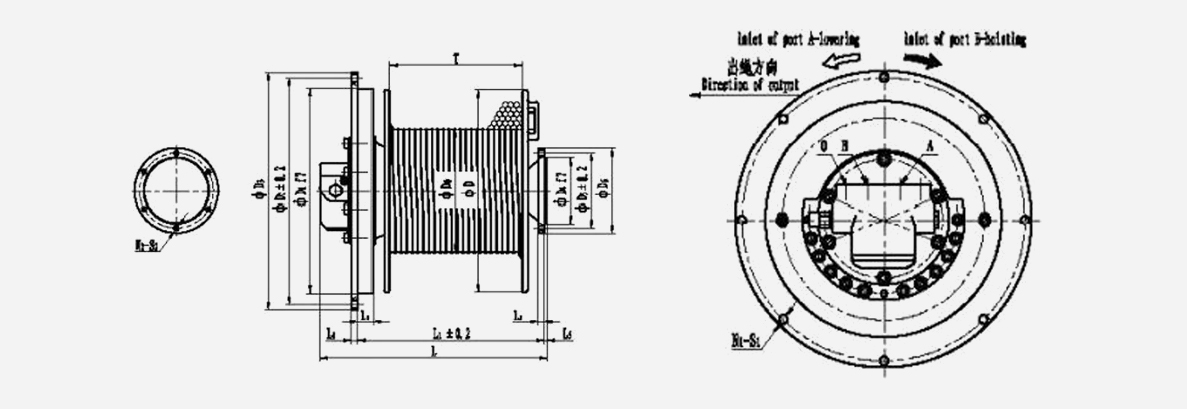

Overall dimensions and oil port specifications
Heavy load (KN) Slight load
(KN)		 Heavy load (KN) Slight load
(KN)		 Heavy load (KN) Slight load
(KN)

D0

 D

T

L1

L2

L3

 L

 W1

 W2

 W3

W

H1

H

N

 S

 A, B

0

IYJ11-ND

3-12

 -

10-50

 -

 337-515

 -

10-30

10-42

5-10

4

55

19.81

165

230

144

160

 212

 0

301

 -

192

230

250

120

235

 4

φ11

M22x1.5

M18x1.5

IYJ22-NA

10-20

 -

10-40

 -

810

 -

10-25

6-30

10

5

75

45

185

305

218

200

289

 0

337

 -

260

300

315

160

313

4

 φ16

G3/4”

G1/2”

IYJ22-NB

10-20

3-8

8-25

20-60

810

405

10-25

6-30

8-11

3

28

45

184

279

168

160

245

138

383

 -

230

270

295

150

289

4

 φ16

G1/2”

G3/8”

IYJ22-ND

10-25

 -

10-40

 - 580-763

 -

16-25

9-57

8-12

5

55

 21.86

172

279

173

178

261

 0

357

 -

200

249

310

146

286

4

φ14

 M22x1.5 M18x1.5
IYJ2.S2.S-NA

25-40

 -

8-36

 - 900-1429

 -

16-26

25-60

12-13

4

72

 40.93

210

340

295

260

380

 0

476

 -

260

320

376

180

350

4

φ17

M22x1.5

M18x1.5
IYJ2.S2.S-NB

25-40

5-15

8-36

20-60

 900-1429 450-929

16-26

25-60

12

5

122

 40.93

225

375

347

330

406

60

566

 -

300

356

412

195

383

4

 φ16

M22x1.5

 M18x1.5
IYJ2.S2.S-NC

15-30

 -

10-45

-

844-1133

 -

15-25

25-60

12

5

122

 32.45

225

375

284

230

342

 0

442

 -

300

356

412

195

383

4

 φ16

M22x1.5

 M18x1.5
IYJ2.S2.S-ND

15-30

 -

10-45

 -

844-1133

 -

15-25

25-60

12

5

122

 32.45

225

375

34

330

406

 0

506

 -

300

356

412

95

383

4

 φ16

M22x1.5

M18x1.5
IYJ2.S2.S-NE

15-25

 -

10-45

 -

844-1133

 -

15-25

25-60

10

4

65

 32.45

225

350

246

 200

300

 0

404

 -

260

320

350

83

358

4

φ16

M22x1.S

M18x1.5
IYJ2.S2.S-NG

30-45

10-20

11-43

20-76

1817-2124

1889-1162

18-25

30-90

12

4

122

 40.93

225

375

347

330

406

178

603

 -

300

356

412

195

383

4

φ16

M22x1.5

M18x1.5

IYJ33-NB

40-60

10-20

15-45

30-90

2177-2438

1864-15

20-26

45-124

14

5

124

27.93

256

438

382

375

 485

 0

633

 -

350

420

476

230

449

4

φ24

G3/4”

G1/2”

IYJ33-ND

40-60

 -

12-46

 -

2618-2933

 -

18-26

45-124

16

4

120

33.6

320

510

418

360

519

 0

678

250

410

458

558

267

522

8

φ26

G3/4”

G1/2”
