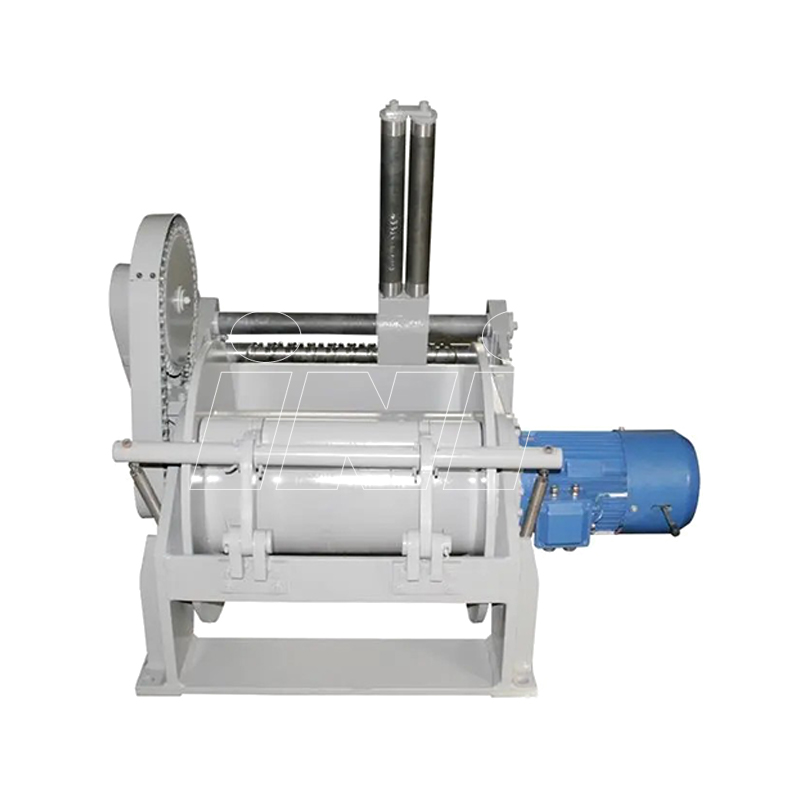

Product Description:
IDJ series electric winch consists of an electromotor with brake, planetary gearbox, drum, and frame. The customer only

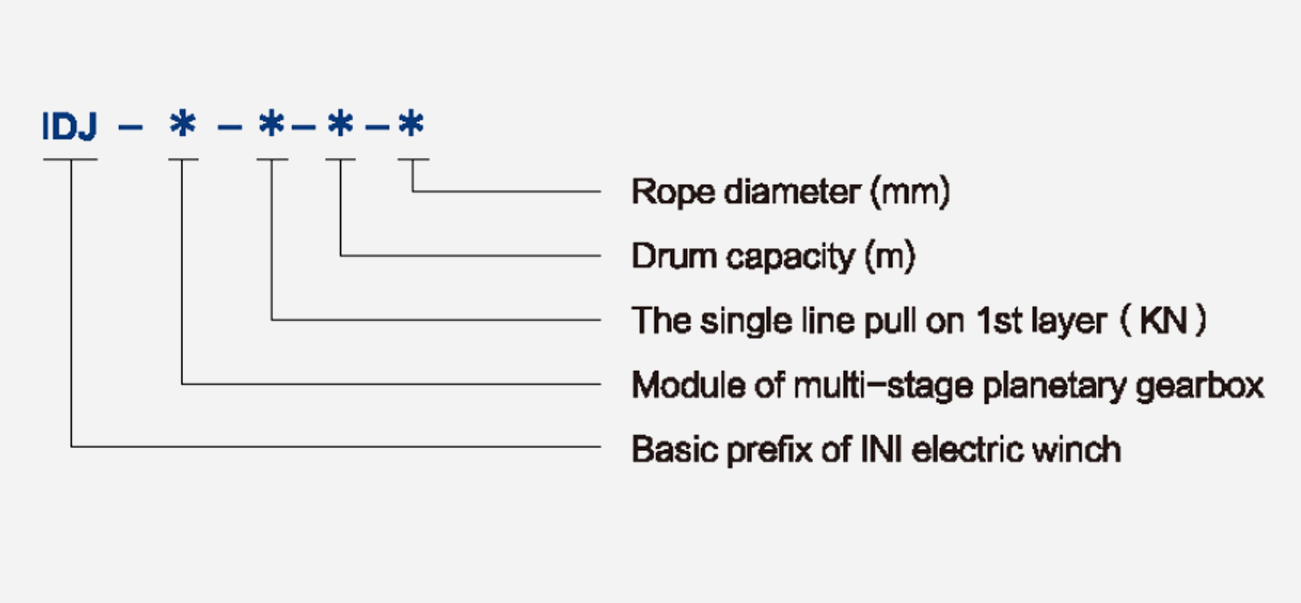

Model Options:
Options Example:
IDJ23-10-30-14 represents that the electric winch adopts two stages planetary gearbox, the modules of the gearbox are2.5 and 3 respectively, the single line pull on 1st layer is 10kN, the drum capacity is 30m, and the rope diameter is 14mm.
|
Main specification |

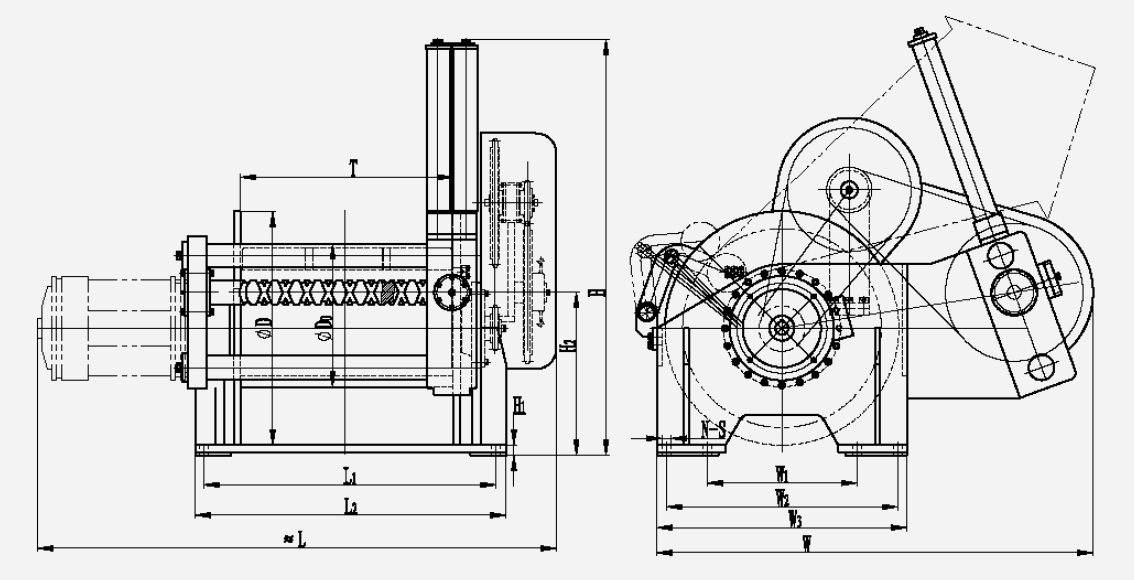

Overall dimensions |
|||||||||||||||||||||||||
| Serial code | Model | The 1st layer |
Diameter of rope |
Layer | Capacity of rope | Model of electromotor | Parameter of electromotor | Ratio | Power |
D0 |
D |
T |
L1 |
L2 |
L |
W1 |
W2 |
W3 |
W |
H1 |
H2 |
H |
N |
S |
||
| Pull | Spade | Volt | Frequency | |||||||||||||||||||||||
|
IDJ23 |
IDJ023-2-400-17 |
2.2 |
27 |
17 |
8 |
400 |
YZ-112S-6-E |
380 |
50 |
63 |
1.1 |
500 |
840 |
567 |
- |
997 |
1448 |
- |
- |
930 |
1100 |
114 |
444 |
1920 |
- |
- |
|
IDJ233 |
IDJ233-10-3000-6-Z |
16.5 |
11.8 |
28 |
4 |
500 |
IDGF-132S-4 |
440 |
60 |
163.5 |
5.5 |
345 |
688 |
626 |
860 |
914 |
1116 |
440 |
680 |
735 |
1343 |
30 |
374 |
1222 |
8 |
φ26 |
Products provided by famous enterprises are deeply trusted by users.
Years Industry Experience
Factory Area
Skillful Employees
Advanced Production Line
INI Hydraulic Co., Ltd. has specialized in designing and manufacturing hydraulic winches, hydraulic motors and planetary gearboxes for more than twenty years. We are one of the professional China Electric Tugger Winch Suppliers and Electric Tugger Winch Factory. Customizing to optimize customers’ ingenious equipment designs is our way to stay alive robustly in the market. Over 26 years, driven by the commitment of always innovating to satisfy customers’ needs, we have developed a wide range of product lines based on our self-developed technologies. The wide spectrum of products, each correlating intimately, contains hydraulic and electric winches, planetary gearboxes, slewing drives, transmission drives, hydraulic motors, pumps and hydraulic systems.
The reliability of our products has been proven strongly in diverse applications, including not limiting industrial machinery, construction machinery, ship & deck machinery, off-shore equipment, mining and metallurgical machinery.
Besides, our product quality has been approved by multiple worldwide renowned certificate bodies. The certifications, that our products have obtained, include EC-Type Examination Certificate, BV MODE, DNV GL Certificate, EC Attestation of Conformity, Certificate of Type Approval for Marine Product and Lloyd’s Register Quality Assurance. So far, besides China, our domestic market, we have widely exported our products to the United States, Germany, the Netherlands, Australia, Russia, Turkey, Singapore, Japan, South Korea, Malaysia, Vietnam, India and Iran. Our logistics and after-sales services cover the whole world promptly and reliably for our customers’ deep interests.
Our products have obtained, include EC-Type Examination Certificate, BV, MODE, DNV, GL Certificate, EC Attestation of Conformity, Certificate of Type Approval for Marine Product and Lloyd’s Register Quality Assurance.
