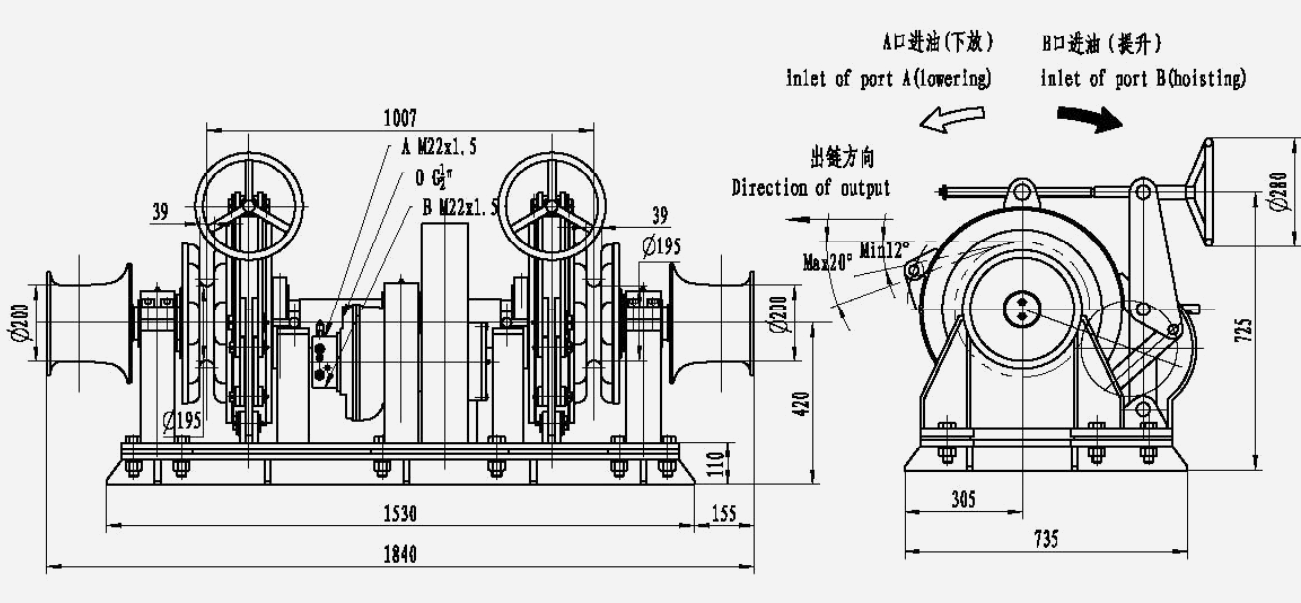

IYM series hydraulic anchor winches consist of a valve block with braking and overload protection function, hydraulic motor, planetary gearbox, hydraulic/manual band brake, hydraulic/manual jaw clutch, frame, etc. The winch is fitted with a valve block. lt not only simplifies the hydraulic system but also improves the reliability of the transmission drive, making the winches run smoothly during hoisting and lowering.in addition, the winches feature high start-up efficiency and working efficiency, low noise and energy consumption, compact design, and good economic value. They have been widely used on various vessels.
Example:
|
Model |
Working load (KN) |
Overload pull (RN) |
Holding load (KN) |
Nominal speed of windlass (m/min) |
Anchorage |
Total displacement (mL/r) |
Rated Pressure (mL/r) |
Supply oi1 flow (L/min) |
Chain diameter (mm) |
|
IYM8-2xφ22x6 |
20.6 |
30.9 |
>126 |
>9 |
<82.5 |
1938 |
17 |
31 |
22 |
Products provided by famous enterprises are deeply trusted by users.
Years Industry Experience
Factory Area
Skillful Employees
Advanced Production Line
INI Hydraulic Co., Ltd. has specialized in designing and manufacturing hydraulic winches, hydraulic motors and planetary gearboxes for more than twenty years. We are one of the professional China Auto Boat Hydraulic Anchor Winch Manufacturers and Auto Boat Hydraulic Anchor Winch Suppliers. Customizing to optimize customers’ ingenious equipment designs is our way to stay alive robustly in the market. Over 26 years, driven by the commitment of always innovating to satisfy customers’ needs, we have developed a wide range of product lines based on our self-developed technologies. The wide spectrum of products, each correlating intimately, contains hydraulic and electric winches, planetary gearboxes, slewing drives, transmission drives, hydraulic motors, pumps and hydraulic systems.
The reliability of our products has been proven strongly in diverse applications, including not limiting industrial machinery, construction machinery, ship & deck machinery, off-shore equipment, mining and metallurgical machinery.
Besides, our product quality has been approved by multiple worldwide renowned certificate bodies. The certifications, that our products have obtained, include EC-Type Examination Certificate, BV MODE, DNV GL Certificate, EC Attestation of Conformity, Certificate of Type Approval for Marine Product and Lloyd’s Register Quality Assurance. So far, besides China, our domestic market, we have widely exported our products to the United States, Germany, the Netherlands, Australia, Russia, Turkey, Singapore, Japan, South Korea, Malaysia, Vietnam, India and Iran. Our logistics and after-sales services cover the whole world promptly and reliably for our customers’ deep interests.
Our products have obtained, include EC-Type Examination Certificate, BV, MODE, DNV, GL Certificate, EC Attestation of Conformity, Certificate of Type Approval for Marine Product and Lloyd’s Register Quality Assurance.
