OEM/ODM IYH22-IYH33 Series Hydraulic Slewing Drives Suppliers, Factory

IYH22-IYH33 Series Hydraulic Slewing Drives

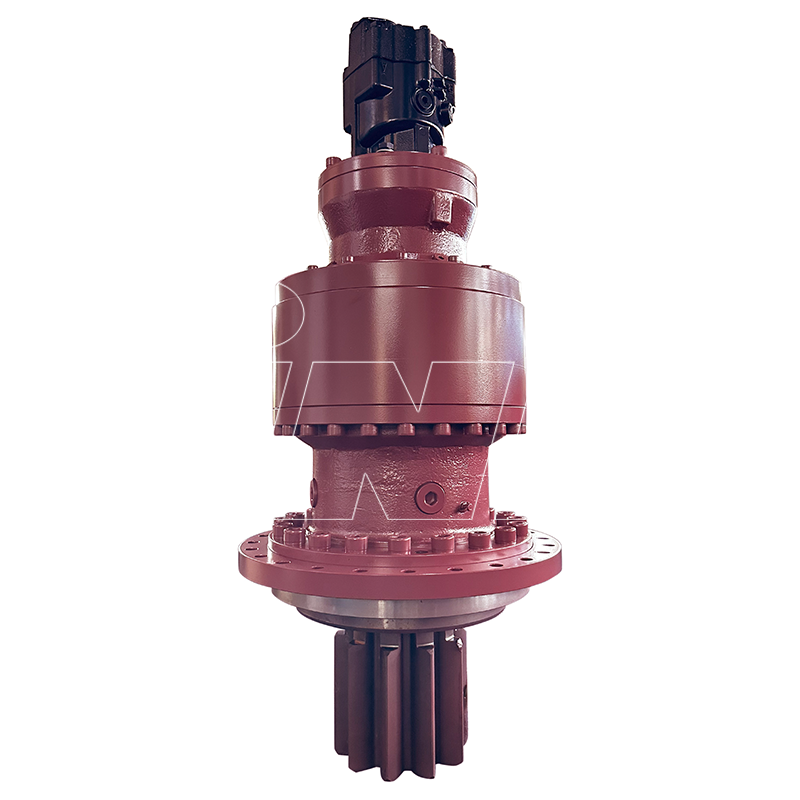

IYH series hydraulic slewing drives are self-developed with independent intellectual property rights. They mainly consist of hydraulic motors,multi-disc hydraulic brakes, Ctype planetary gearboxes, and distributors. hydraulic motors can choose different distributors according to the working conditions, such as counterbalance valve、overload valve、shuttle valve、speed control directional valve, and another function valve. This series of hydraulic slewing drives featured compact and elegant figures, small sizes and lightweight, high efficiency and power, low noise, and good operating performance. Therefore, the series of hydraulic slewing drives have been widely used in mobile cranes, vehicle cranes, aerial platforms, tracked vehicles, and so on.IYH series hydraulic slewing drives have been well sold in China companies such as SANY, and also have been exported to the USA, Japan, Australia, Russia, Austria, Netherlands, Indonesia, Korea, and other areas in the world.

INI Hydraulic Co., Ltd.

27+

Years Industry Experience

150000+

Factory Area

450+

Skillful Employees

18+

Advanced Production Line

HONOR & CERTIFICATE

Our products have obtained, include EC-Type Examination Certificate, BV, MODE, DNV, GL Certificate, EC Attestation of Conformity, Certificate of Type Approval for Marine Product and Lloyd’s Register Quality Assurance.

18 Nov,2024

How Can an Electric Lifting Winch Be Used for Both Indoor and Outdoor Lifting Applications?

1. Indoor Applications: Precision and Space ConstraintsIndoor spaces often present specific challenges, such as tight areas, limited headroom, and precise load ...
11 Nov,2024

What Are the Advantages of Customizing Mooring Winches for Specific Vessel Types?

1. Optimized Performance for Specific Mooring ConditionsEach vessel type operates under unique mooring conditions based on factors such as size, weight, draft, ...
04 Nov,2024

In what situations is it necessary to use a ditch boat winch?

1. Dredging and cleaningDitch boat winches play an important role in dredging operations in waterways and ditches. Over time, silt, weeds and other obstacles ac...
28 Oct,2024

Industrial transmission equipment: How to choose the appropriate type to meet specific application requirements?

1、 Clarify application requirementsClarifying the application requirements is a crucial step when selecting industrial transmission devices. This includes a dee...
21 Oct,2024

Selection and Application of Industrial Hydraulic Motors: How to Accurately Match According to Working Condition Requirements?

1、 Selection principles for industrial hydraulic motorsThe selection of industrial hydraulic motors is a complex and crucial process that directly determines th...
14 Oct,2024

How to achieve efficient and safe operation of the free fall function of the IYJ-L series high-speed hydraulic winch?

1、 Advanced design structure: laying the foundation for efficient and safe operationThe IYJ-L series high-speed hydraulic winch incorporates multiple advanced t...

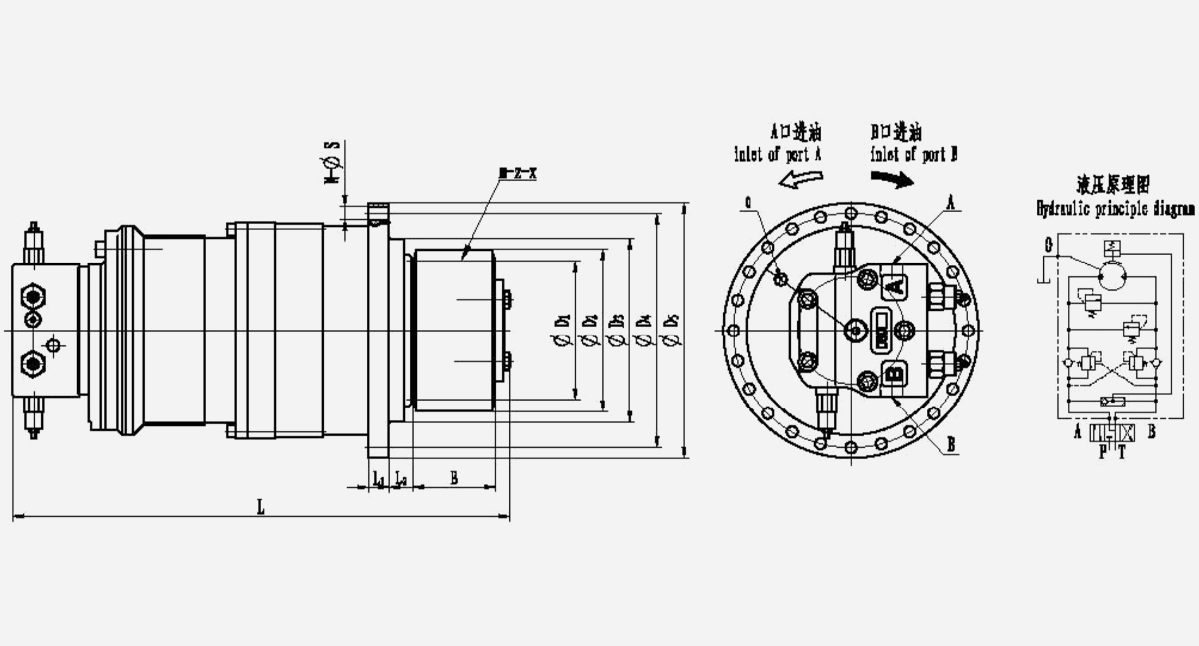

Serial Code	Rated torque (N.m)	Rated Speed (N.m)	Total displacement (ml/r)	Working pressure(Mpe)	Supply oil flow(MPa)	Gearbox Model(Ratio)	Gear parameters			Overall dimensions and oil port specifications
Serial Code	Rated torque (N.m)	Rated Speed (N.m)	Total displacement (ml/r)	Working pressure(Mpe)	Supply oil flow(MPa)	Gearbox Model(Ratio)	M	Z	X	D0	D1	D2	D3	D4	D5	D6	L1	L2	L3	L4	L5	L	N	S	A、B	0
IYB22-A	1500~3000	0-12	2857.5	6~11	40	C22(i=22.86)	6	13	0.5	-	78	96	-	65	200	188	16	50	70	-	-	476	12	13	G3/4'	G1/2'
IYE22-B	1500~3000	0-12	2857.5	6~11	40	C22(i=22.80)	8	11	0.5	-	88	10	130	-	200	188	16	50	88	-	-	506	12	13	G3/4'	G1/2'
ITR22-C	1500~3000	0~12	2857.5	6~11	40	C22(i=22.86)	8	12	0.5	-	96	118	130	65	200	188	16	50	61	-	-	467	12	13	G3/4'	G1/2'
IYB22-D	1500-3000	0-12	2857.5	6-11	40	C22(i=22.86)	8	13	0.5	-	104	26	30	165	200	88	16	50	70	-	-	476	12	13	G3/4'	G1/2'
IYE22-B	3500~5000	0~14	2683	10~14	44	C22(i=26.83)	6	17	0.5	50	102	119	150	190	220	185	16	43.5	60	19	18	488	8	14.5	G3/4'	G1/2'
IYE21-D	3500~5000	0-14	2683	10~14	44	C22(i=26.83)	8	1	0.5	50	881	110	150	190	220	185	16	-	-	19	18	500	8	14.5	G3/4'	G1/2'
IYE22-C	3500~5000	0~14	2683	10-14	44	C22(i=26.83)	8	13	0.5	50	104	26	150	190	220	185	16	43.5	80	19	18	508	8	14.5	G3/4'	G1/2'
IYB22-O	3500~5000	0-14	2683	10-14	44	C22(i=26.83)	10	11	0.5	50	110	40	50	90	220	85	16	43.5	80	19	8	50B	8	4.5	G3/4'	G1/2'
IYE33-A	4000~6600	0-20	2325~3726	13~16	88	C33(i=18.6)	8	11	0.5	-	88	12	70	22	245	224	20	70	90	-	-	605	20	12.5	G3/4'	G1/2'
IYE33-B	4000~6600	0-20	2325~3726	13~16	88	C33(i=18.6)	8	5	0.5	-	120	44	170	22	245	224	20	70	90	-	-	605	20	12.5	G3/4'	G1/2'
IYE33C	4000~6600	0~20	2325~3726	13~16	88	c33(i=18.6)	10	12	0.5	-	120	149	70	22	245	224	20	70	90	-	-	605	20	12.5	G3/4'	G1/2'
IYE33-D	4000~6600	0-20	2325-3726	13~16	88	C33(i=18.6)	10	13	0.5	-	130	159	70	22	245	224	20	70	90	-	-	605	20	12.5	G3/4'	G1/2'
IYE33-E	7000~12000	0~12	5296~6620	12~16	92	C33(i=33.1)	10	13	0.5	-	130	60	200	250	280	280	20	41	90	-	-	655	24	3.5	G3/4'	G1/2'
IYE33-F	000-12000	0-12	5296~6620	12~16	92	C33(i=33.1)	10	15	0.5	-	150	180	200	250	280	280	20	41	100	-	-	655	24	13.5	G3/4'	G1/2'
IYH33-G	7000~12000	0-12	5296-6620	12-16	92	C33(i=33.1)	12	13	0.5	-	156	192	200	250	280	280	20	41	100	-	-	665	24	13.5	G3/4'	G1/2'

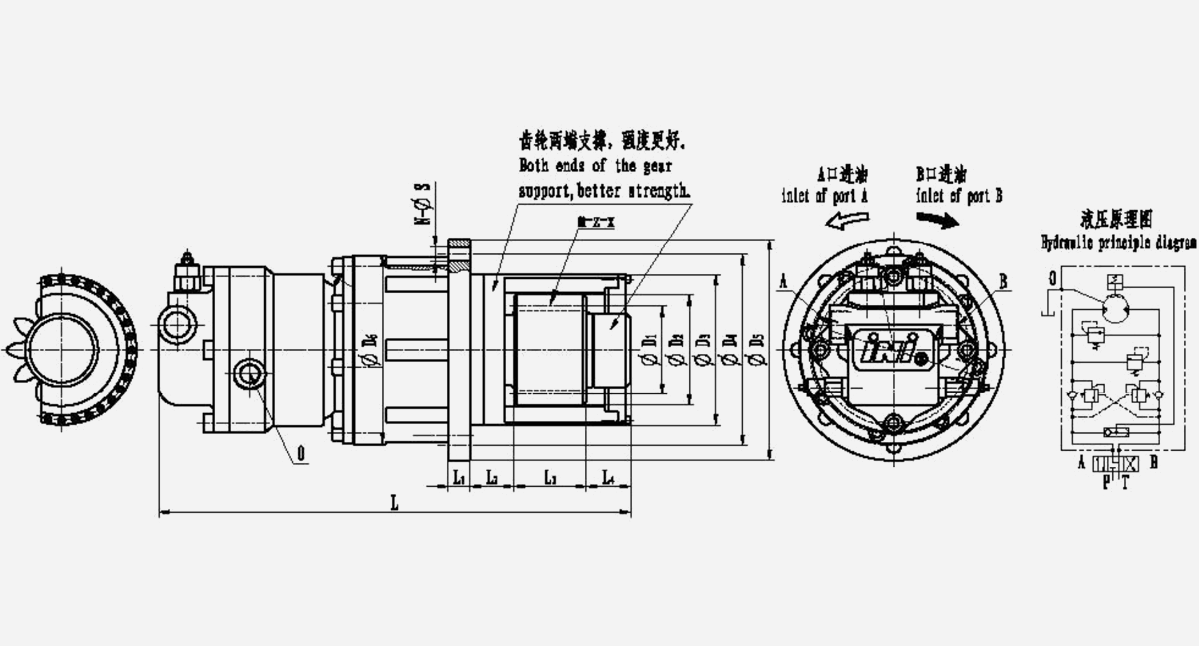

Serial Code	Rated torque (N.m)	Rated Speed (N.m)	Total displacement (ml/r)	Working pressure(Mpe)	Supply oil flow(MPa)	Gearbox Model(Ratio)	Gear parameters			Overall dimensions and oil port specifications
Serial Code	Rated torque (N.m)	Rated Speed (N.m)	Total displacement (ml/r)	Working pressure(Mpe)	Supply oil flow(MPa)	Gearbox Model(Ratio)	M	Z	X	D0	D1	D2	D3	D4	D5	D6	L1	L2	L3	L4	L5	L	N	S	A、B	0
ITH22-I	3500~5000	0~14	2683	10~14	44	C22(i=26.83)	6	13	0.5	-	78	96	-	65	200	188	16	5D	70	-	-	476	12	13	G3/4'	G1/2'
ITB22-J	3500~5000	D~14	2683	10-14	44	C22(i=26.83)	8	11	0.5	-	88	10	130	-	200	188	16	50	88	-	-	506	12	13	G3/4'	G1/2'
IYB22-K	3500~5000	0~14	2683	10~14	44	C22(i=26.83)	8	12	0.5	-	96	118	130	65	200	188	16	50	61	-	-	467	12	13	G3/4'	G1/2'

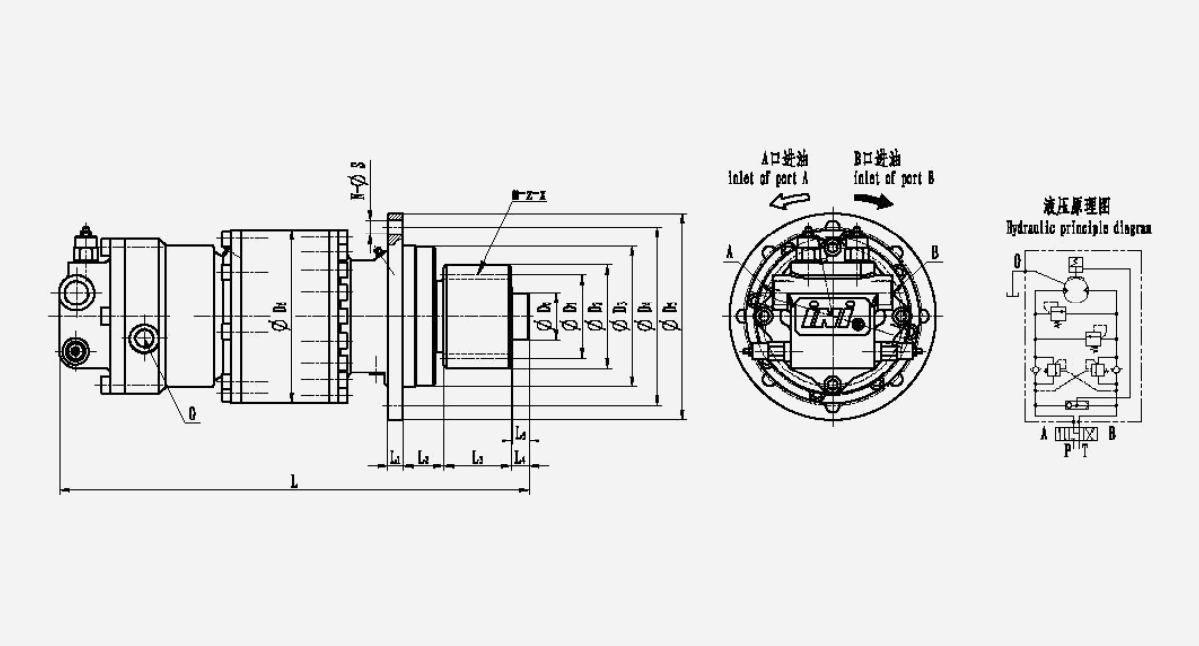

Serial Code	Rated torque (N.m)	Rated Speed (N.m)	Total displacement (ml/r)	Working pressure(Mpe)	Supply oil flow(MPa)	Gear parameters						Overall dimensions and oil port specifications
Serial Code	Rated torque (N.m)	Rated Speed (N.m)	Total displacement (ml/r)	Working pressure(Mpe)	Supply oil flow(MPa)	M	Z	X	B	D1	D2	D3	D4	D5	L1	L2	L	N	S	A.B	0
ITM2.5-A	800-2000	0~120	430~1057	16	5/5.5/7	5	17	0.5	70	85	99.5	180	230	250	20	24	478	24	11	M22*1.5	G1/4'
ITH2.5-B	800~2000	0-120	430-1057	16	5/5.5/7	6	17	0.5	60	102	118.8	180	230	250	20	24	468	24	11	M22*1.5	G1/4'
IYH2.5-C	800-2000	0-120	430-1057	16	5/5.5/7	8	17	0.5	54	136	159.04	180	230	250	20	24	462	24	11	M22*1.5	G1/4'
IT12.5-D	800~2000	0-120	430~1057	16	5/5.5/7	12	13	0.5	8D	156	191.64	180	230	250	20	24	488	24	11	M22*1.5	G1/4'
IYH2.53-A	3000-6500	0-32.5	1720-3320	16	20/28		17	0.5	60	102	118.8	250	290	320	20	75	565	16	17	M22*1.5	G1/4'
ITH2.53-B	3000~6500	0~32.5	1720~3320	16	20/28		15	0.63	80	120	45.63	250	290	320	20	75	585	16	17	M22*1.5	G1/4'
ITH2.53-C	3000~6500	0~32.5	1720-3320	16	20/28	10	13	0.5	85	130	160	250	290	320	20	15	590	16	17	M22*1.5	G1/4'
IYH3-A	2600~5316	0-100	1344~2711.5	16	5/5.5/7	6	17	0.5	60	102	118.8	235	252	270	38	90.5	483	24	10.5	M22*1.5	G1/2'
IYH3-B	2620~5316	0~100	1344~2711.5	16	5/5.5/7		15	0.5	60	120	143.24	235	252	270	38	90.5	483	24	10.5	M22*1.5	G1/2'
IYH3-C	2600-5316	0-190	1344-2711.5	16	5/5.5/7	10	12	0.63	80	120	149	235	252	270	38	905	503	24	10.5	M22*1.5	G1/2'
IYH3-D	2690~5316	0~100	1344~2711.5	16	5/5.5/7	12	15	0.65	90	180	416.39	235	252	270	38	90.5	513	24	10.5	M22*1.5	G1/2'
IYH4-A	4873-10886	0~90	2430-5428.5	16	5/5.5/7	10	17	0.6	85	170	200.64	330	370	400	24.5	123	625	24	17	M33*2	G1/2'
IYH4-B	4873-10886	0-90	2430~5428.5	16	5/5.5/7	12	13	0.5	100	156	191.5	330	370	400	24.5	123	640	24	11	M33*2	G1/2'
IYH4-C	4873~10886	0~90	2430~5428.5	16	5/5.5/7	14	15	0.5	100	210	250.58	330	370	400	24.5	123	640	24	17	M33*2	G1/2'
IYH4-D	4873-10386	0-90	2430-5428.5	16	5/5.5/7	16	12	0.5	100	192	238.4	330	370	400	24.5	123	640	24	17	M33*2	G1/2'
IYH5-A	13195-22136	0-40	6580-11038.5	16	5/5.5/7	12	18	0.564	85	216	252.03	400	432	460	22	179	979	24	17	φ50	G1/2'
IYH5-B	13195~22136	0~40	6580~11038.5	16	5/5.5/7	14	15	0.5	100	210	250.50	400	432	460	22	179	994	24	17	φ50	G1/2'
IYH5-C	13195~22136	0~40	6580~11038,5	16	5/5.5/7	16	12	0.5	100	192	237.92	400	432	460	22	179	994	24	17	φ50	G1/2'
IYH6-A	25197~33540	0-35	12565-16725.5	16	5/5.5/7	16	17	0.5	150	272	320	495	525	565	35	235	1215	24	21	φ50	G1/2'
IYH6-B	25197-33540	0-35	12565-16725.5	16	5/5.5/7	20	15	0.5	160	300	359.6	495	525	565	35	235	1225	24	21	φ50	G1/2'
IYH34-A	12000~18000	0-5.5	6622-11165	16	38.5	12	12	0.5	100	144	180	330	370	400	40	125.5	663	24	17	M33*2	G1/4'
IYH34-B	12000-18000	0-5.5	6622-1116	16	38.5	14	14	0.5	100	196	236.6	330	370	400	40	125.5	663	24	17	M33*2	G1/4'
IYH45-A	13000~25000	0-22	7028~13804	16	28	12	14	0.5	90	168	202.8	426	455	490	25	94	770	32	21	M33*2	G1/2'
IYH45-B	13000-25000	0-22	7028-13804	16	28	14	15	0.5	100	210	250.58	426	455	490	25	94	780	32	21	M33*2	G1/2'
IYH45-C	13000~25000	0-22	7028-13804	16	28	16	12	0,5	100	192	237.92	426	455	490	25	94	780	32	21	M33*2	G1/2'
IYH56-A	32740~61406	0~11	16660-31248	16	28	16	17	0.5	150	272	320	510	545	580	30	351	995	30	21	M33*2	G1/2'
IYH56-B	32740-61406	0-11	16660-31248	16	28	18	14	0.5	180	252	306.18	510	545	580	30	351	1025	30	21	M33*2	G1/2'
IYH56-C	32740~61406	0-11	16660~31248	16	28	20	14	0.4	194	280	329.48	510	545	580	30	351	1039	30	21	M33*2	G1/2'
IYH67-A	63000-90000	0-8	33180-45752	16	28	22	14	0.5	200	308	374	605	650	700	36	235	465	36	25	M33*2	G1/2'
IYH67-B	63080~90000	0-8	33180~45752	16	28	20	13	0.5	180	260	320	605	650	700	36	235	445	36	25	M33*2	G1/2'
IYH67-C	63000~90000	0-8	33180~45152	16	28	18	17	0.5	140	306	360	605	650	100	36	235	1405	36	25	M33*2	G1/2'
IYH67-D	63000-9000	0-8	33180~45752	16	28	16	15	0.5	125	240	281.5	605	650	700	36	235	1390	36	25	M33*2	G1/2'
IYH67-E	63000~90000	0-8	33180~45752	16	28	40	12	0.63	169	480	529.6	605	650	700	36	235	385	36	25	M33*2	G1/2'
IYH79-A	110000~160000	0~10	55285~85148	16	22/28	22	14	0.5	200	308	374	760	810	850	40	449.5	157	36	25	φ50	G1/2'
IYH79-B	110000~160000	0-10	55286~85148	16	22/28	20	13	0.5	180	260	320	760	10	850	40	449.5	155	36	25	φ50	G1/2'
IYH79-C	110000~160000	0-10	55286-85148	16	22/28	18	17	0.5	140	306	360	760	810	850	40	449.5	1511	36	25	φ50	G1/2'
IYH79-D	110000~160000	0-10	55286~85148	16	22/28	40	12	0.63	160	480	529.6	760	810	850	40	449.5	531	36	25	φ50	G1/2'
