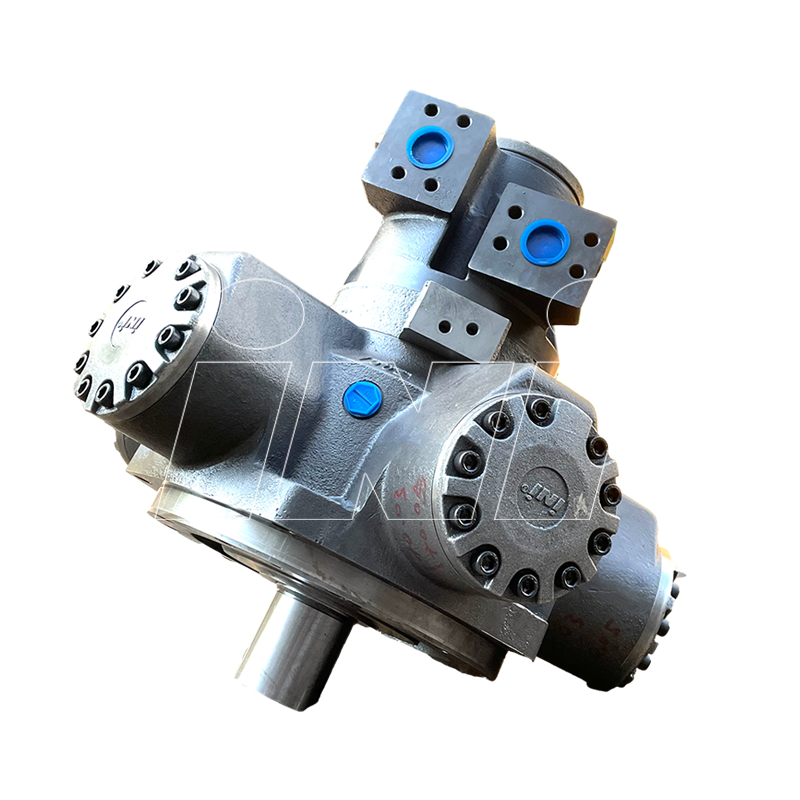

IMC Series Radial Static Pressure Balanced Variable Hydraulic Motor (Can Replace British STAFFA Motor) Custom

Home / Products / Hydraulic Motor / IMC Series Radial Piston Hydraulic Motor / IMC Series Radial Static Pressure Balanced Variable Hydraulic Motor (Can Replace British STAFFA Motor)
  • IMC Series Radial Static Pressure Balanced Variable Hydraulic Motor (Can Replace British STAFFA Motor)
  • IMC Series Radial Static Pressure Balanced Variable Hydraulic Motor (Can Replace British STAFFA Motor)
  • IMC Series Radial Static Pressure Balanced Variable Hydraulic Motor (Can Replace British STAFFA Motor)
  • IMC Series Radial Static Pressure Balanced Variable Hydraulic Motor (Can Replace British STAFFA Motor)

IMC Series Radial Static Pressure Balanced Variable Hydraulic Motor (Can Replace British STAFFA Motor)

The IMC series hydraulic motor inherits the IMB series hydrostatic balance motor structure, high efficiency, high starting torque, high volumetric efficiency, etc. The IMC series two-speed hydraulic motor enables users to select the required displacement for a wide range of special working conditions. Users can switch the displacement by using a remote control or by manual control using the control valve mounted on the motors. The displacement can easily be changed while the motor is still running.
Contact Us Download WhatsApp

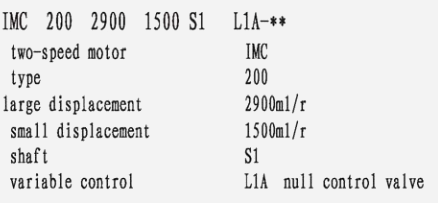

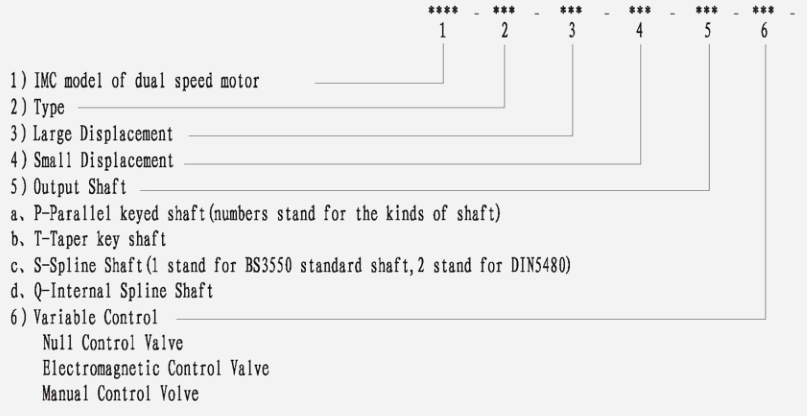

Ordering Code:
Example:
TYPE: IMC100
NOMINAL DISPLACEMENT 1600 1500 1400 1300 1200 1100 1000 900 800 700 600 500 400 300 200 100
ml/r
DISPLACEMENT		 1580 1481 1383 1284 1185 1086 987 889 790 691 592 494 395 296 197 98/0
N.M/Mpa
SPECIFIC TORQUE		 225 212 198 184 169 155 140 125 108 94 78 68 45 30 18 0
r/min
MAX.CONT.SPEED		 260 270 280 300 330 370 405 485 540 540 540 540 540 540 540 900
KW
MAX.CONT.POWER		 99 98 96 93 90 84 82 79 74 69 57 46 35 23 10 0
KM
MAX.CONT.POMER		 120 117 113 109 105 100 97 93 87 81 68 54 40 28 14 0
Mpa
MAX.CONT.PRESSURE		 21 21 21 21 21 21 21 21 21 21 21 21 21 21 21 15
Mpa
MAX.TOP.PRESSURE		 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 15

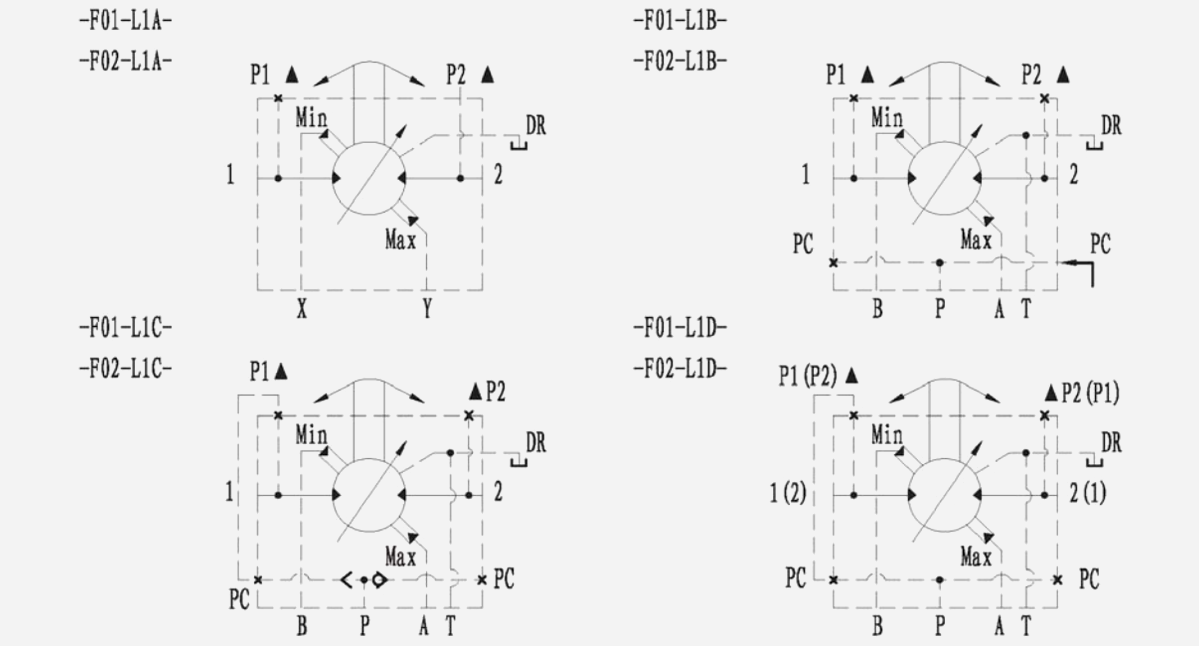

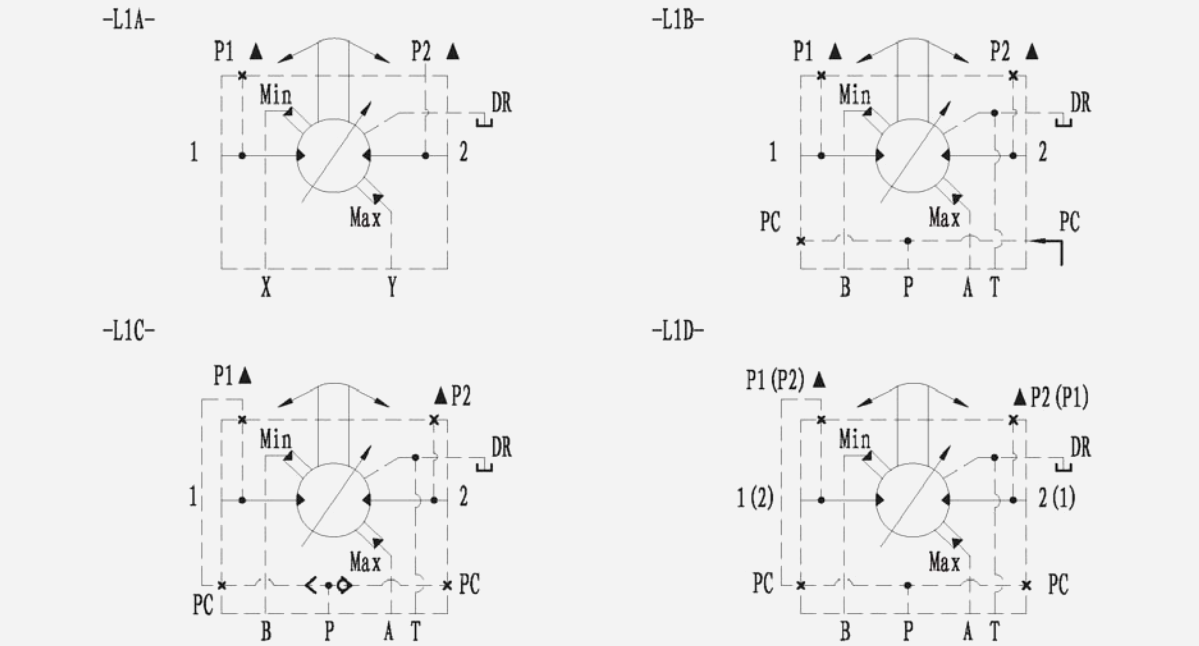

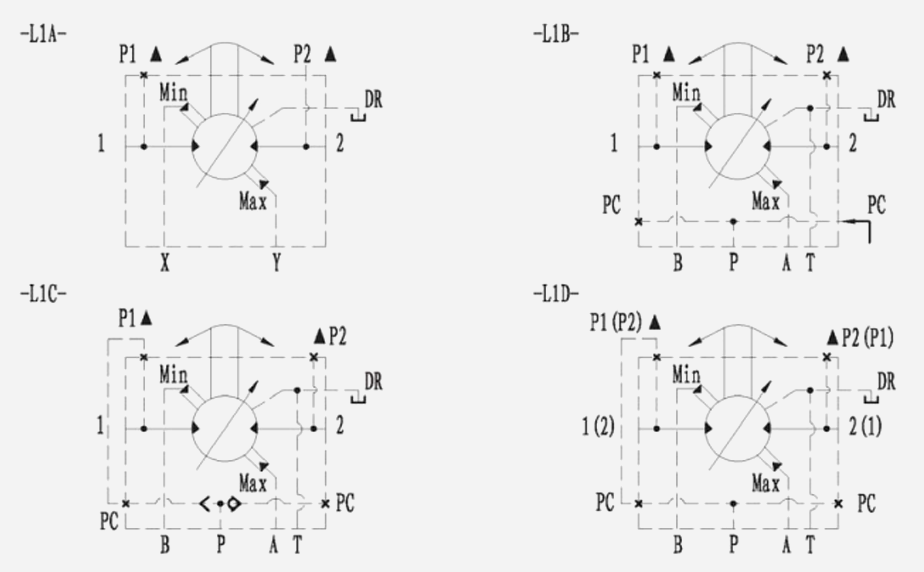

Functional Symbols：

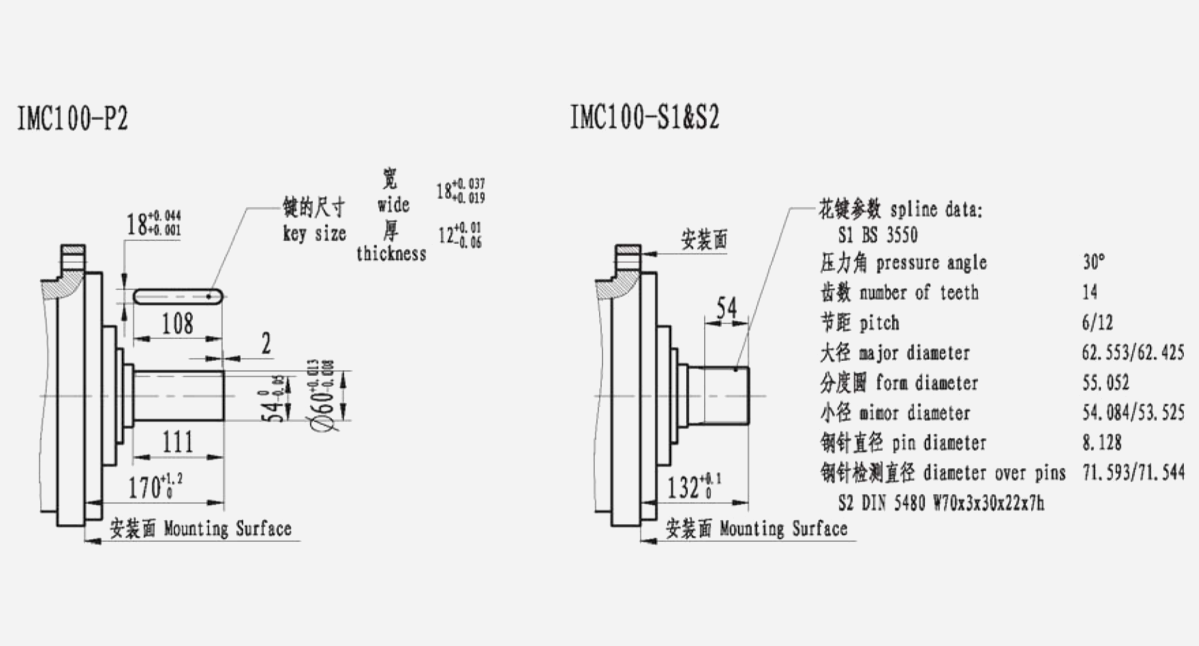

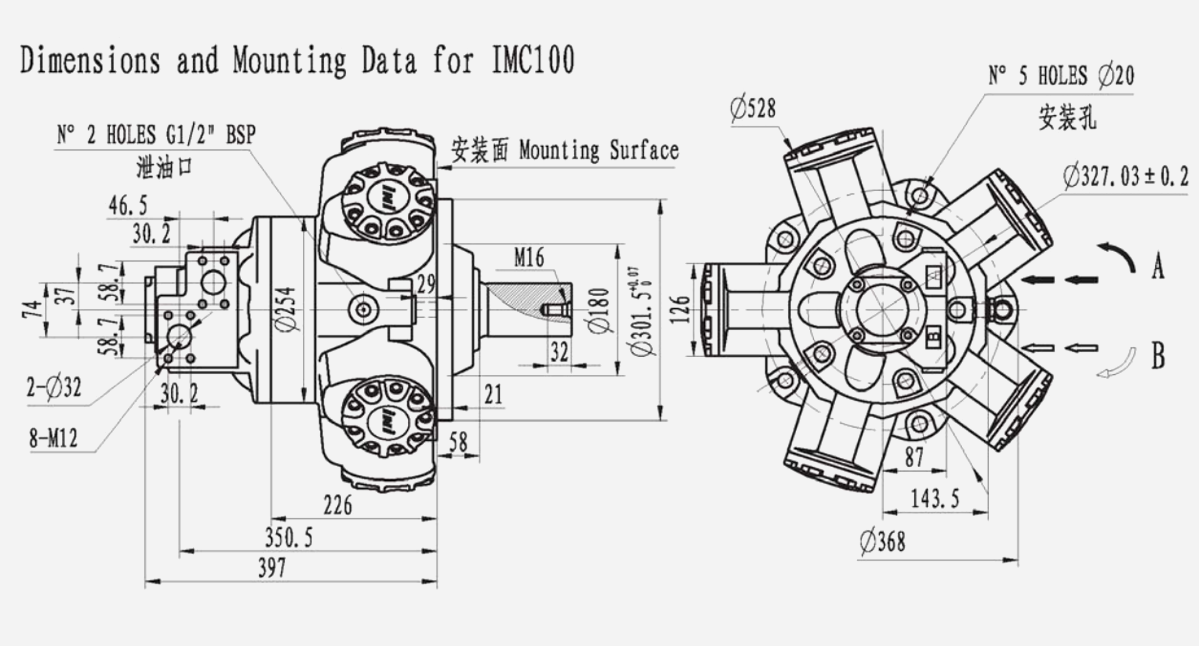

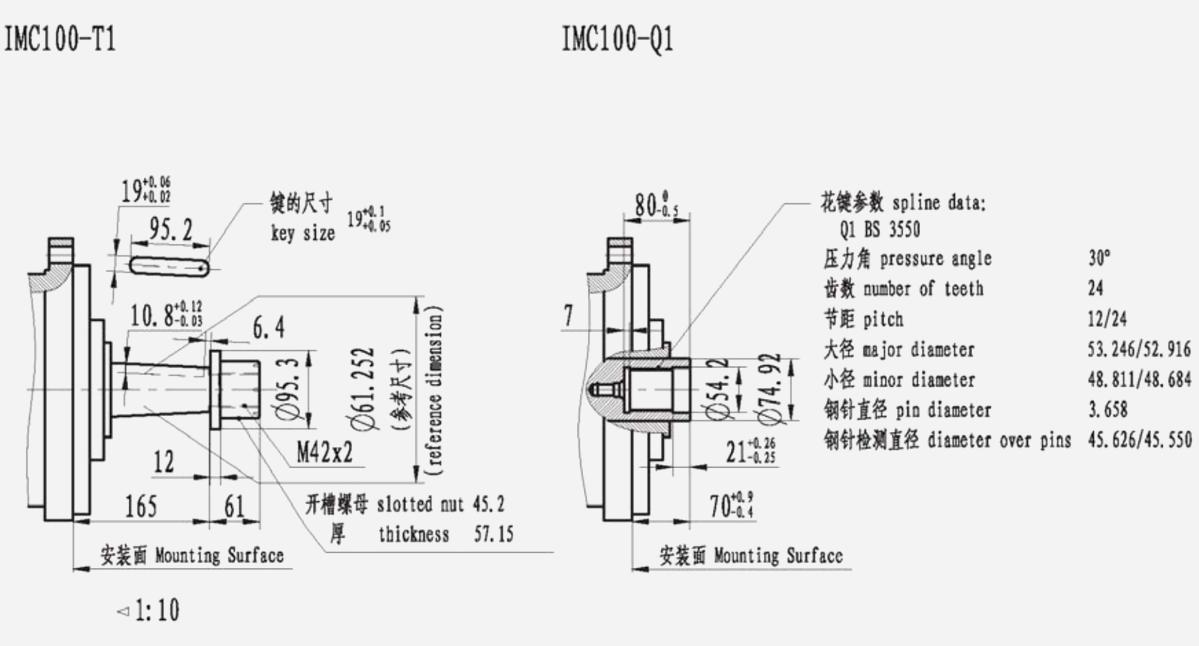

Dimensions and Mounting Data for IMC100：

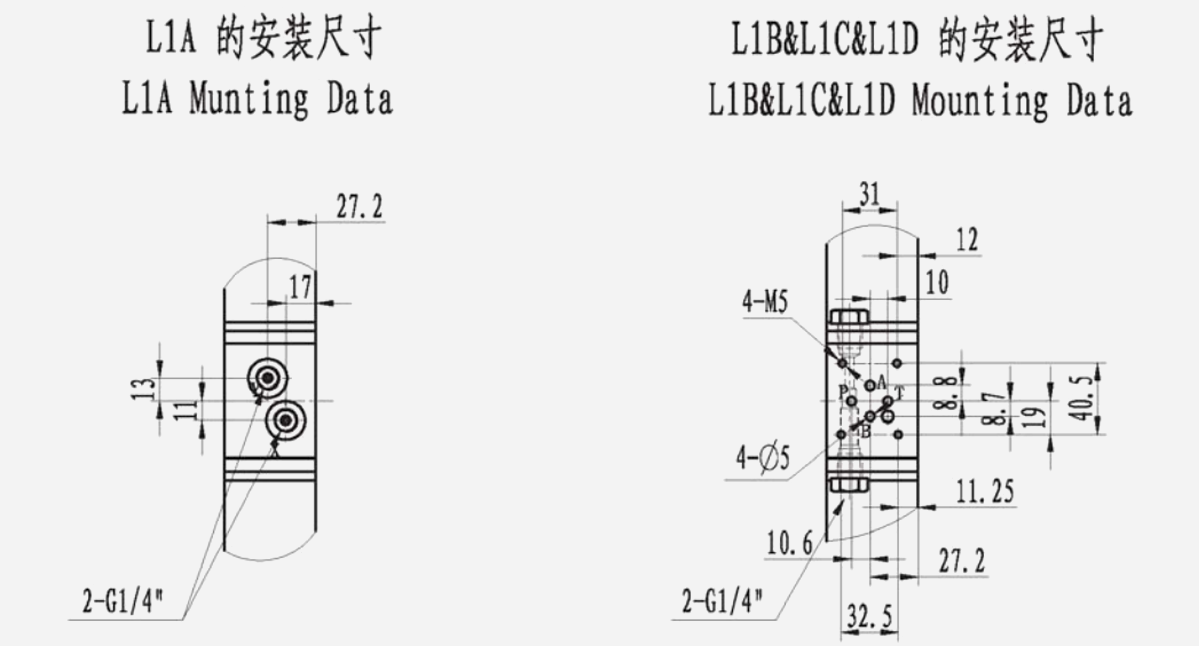

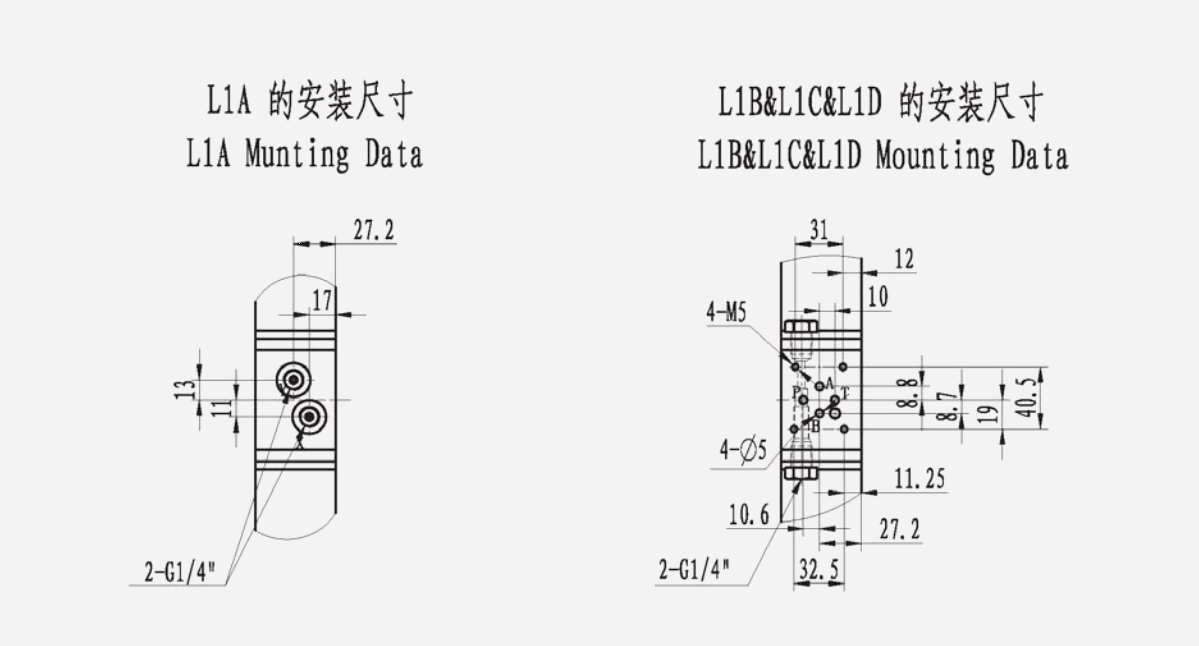

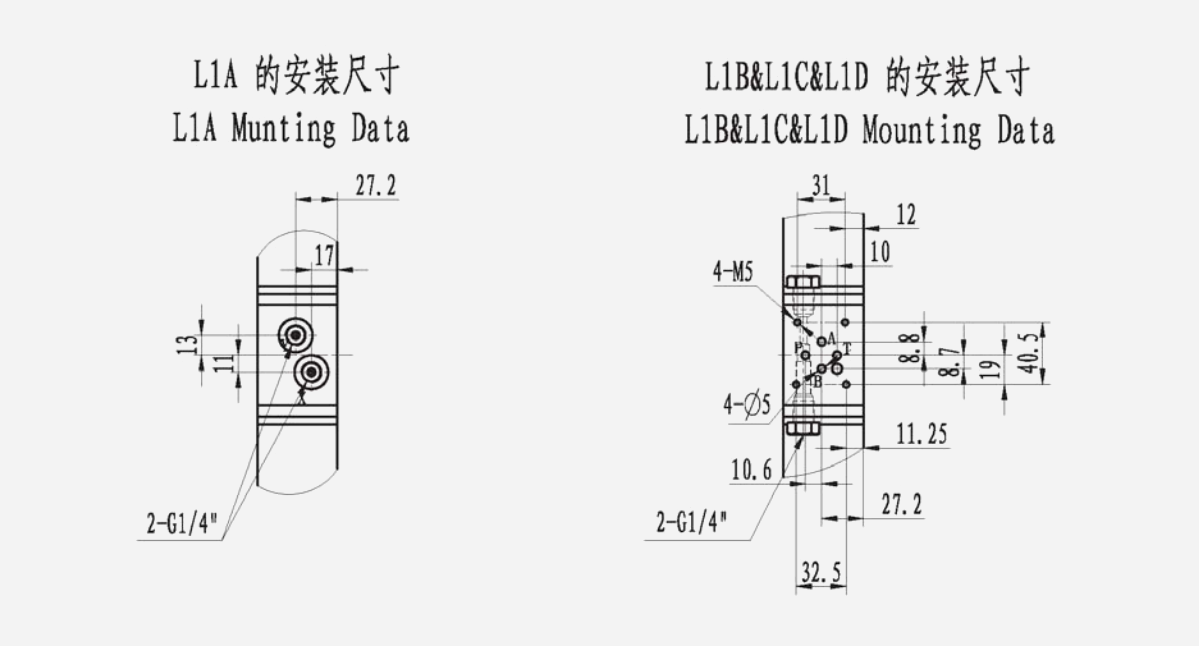

Variable Control's Mounting Data：


TYPE: IMC125
NOMINAL DISPLACEMENT 2100 2000 1800 1600 1500 1300 1200 1000 830 670 510 350 190 110
ml/r
DISPLACEMENT		 2066 1973 1811 1649 1487 1325 1163 1001 839 677 515 353 191 109/0
N.M/Mpa
SPECIFIC TORQUE		 293 281 258 231 206 180 154 125 100 79 57 39 6  0
r/min
MAX.CONT.SPEED		 170 175 190 210 230 265 305 350 395 485 540 540 540  900
KW
MAX.CONT.POWER		 91 89 83 77 71 66 60 55 48 42 33 16 3  0
KM
MAX.CONT.POWER		 106 104 99 95 90 85 79 73 65 57 44 28 5  0
Mpa
MAX.CONT.PRESSURE		 21 21 21 21 21 21 21 21 21 21 21 21 21 15
Mpa
MAX.TOP.PRESSURE		 25 25 25 25 25 25 25 25 25 25 25 25 25 15

Functional Symbols：

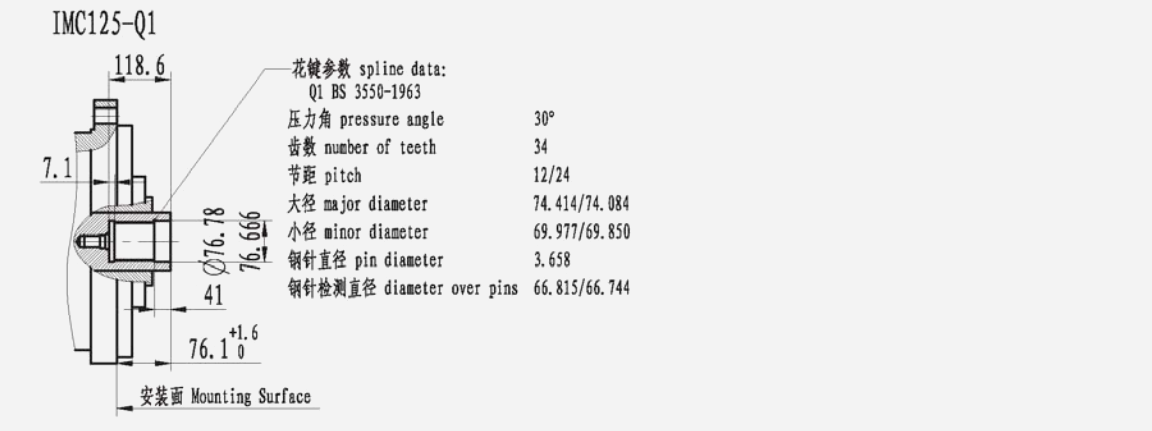

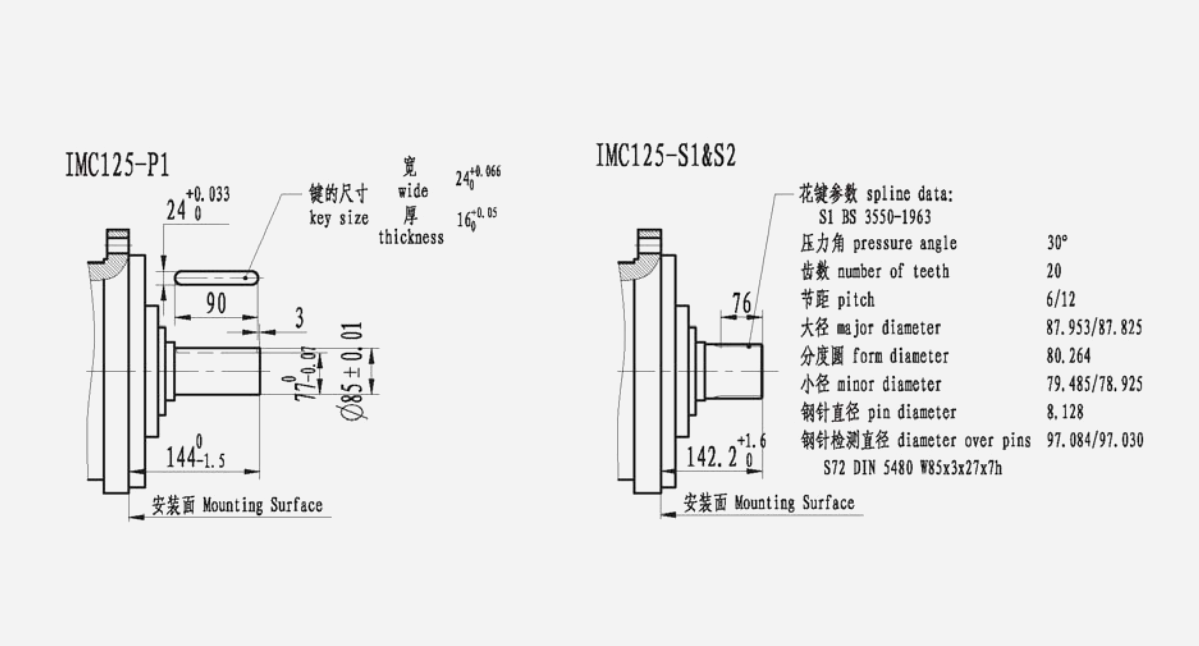

Dimensions and Mounting Data for IMC125：

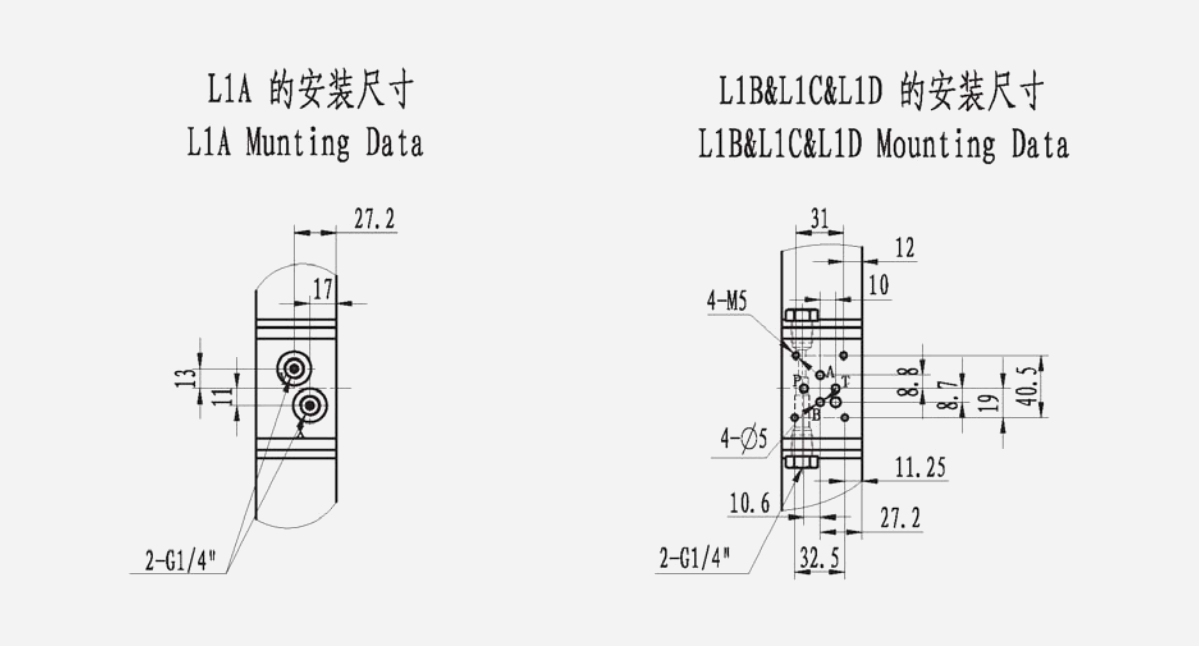

Variable Control's Mounting Data：


TYPE: IMC200
NOMINAL DISPLACEMENT 3100 2900 2800 2600 2400 2300 2100 2000 1800 600 500 300 1200 000 830 670 510 350 190 110
ml/r
DISPLACEMENT		 3080 2958 2796 2634 2472 2310 2148 1973 811 649 1487 1325 1163 00 839 677 515 353 191 109/0
N.M/Mpa
SPECIFIC TORQUE		 447 422 400 375 351 326 300 281 258 231 206 180 154 125 100 79 57 30 6 0
r/min
MAX.CONT.SPEED		 110 115 125 135 140 150 160 175 190 210 230 265 305 350 395 485 540 540 540 900
KW
MAX.CONT.POWER		 131 131 131 124 117 111 96 89 83 77 71 66 60 55 48 42 33 16 3 0
KM
MAX.CONT.POWER		 146 146 146 139 131 124 116 104 99 95 90 85 79 73 65 57 44 28 5 0
Mpa
MAX.CONT.PRESSURE		 21 21 21 21 21 21 21 21 21 21 21 21 21 21 21 21 21 21 21 15
Mpa
MAX.TOP.PRESSURE		 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 25 15

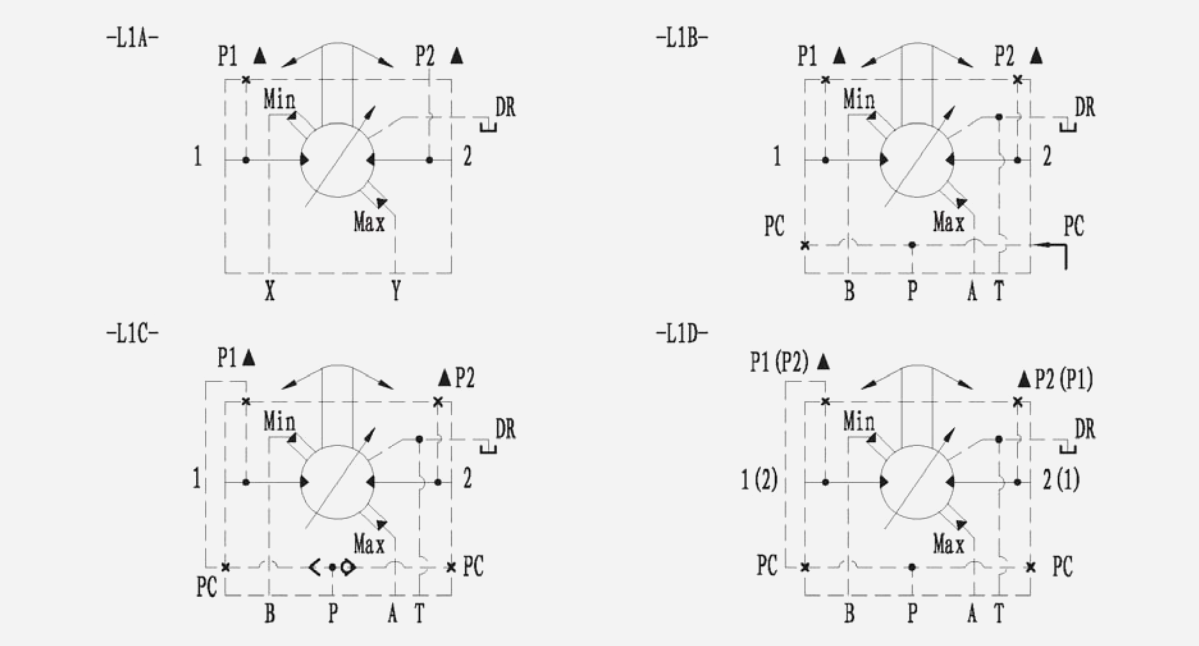

Functional Symbols：

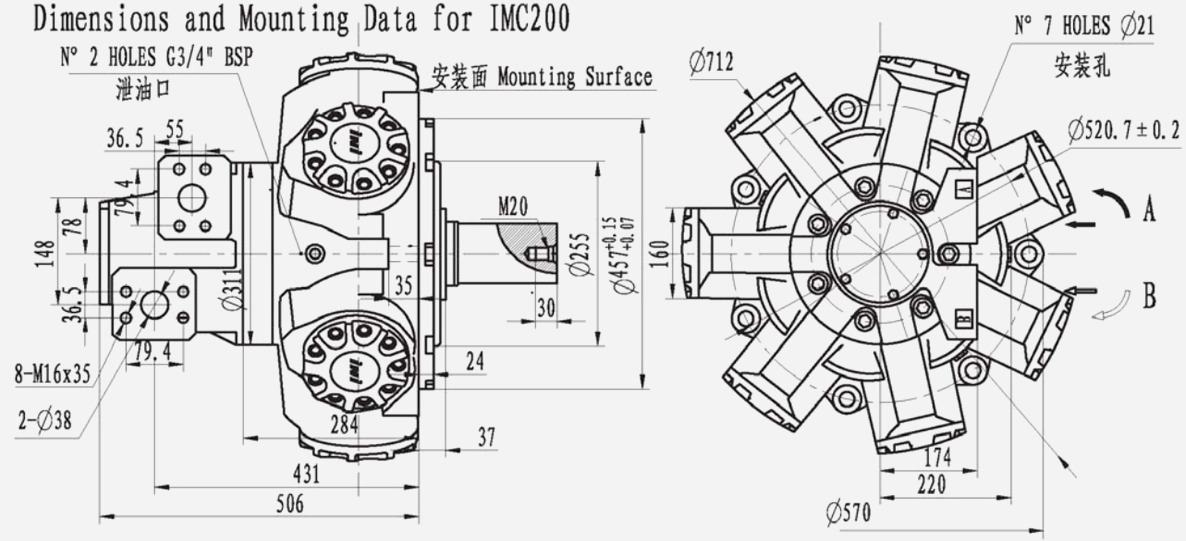

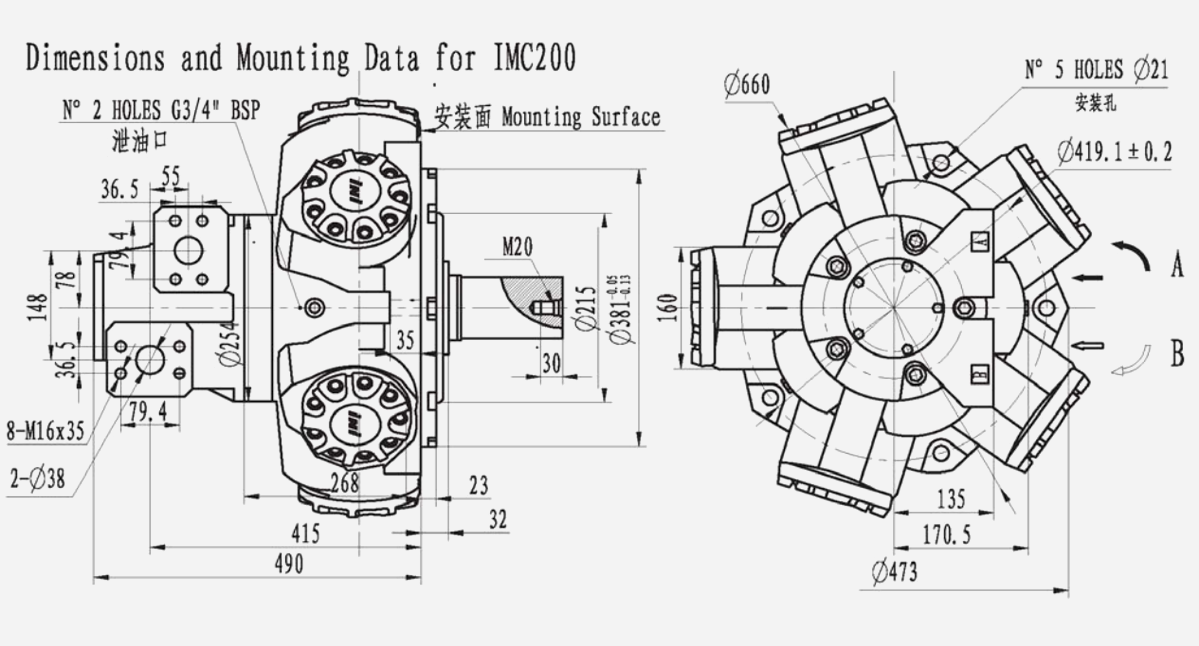

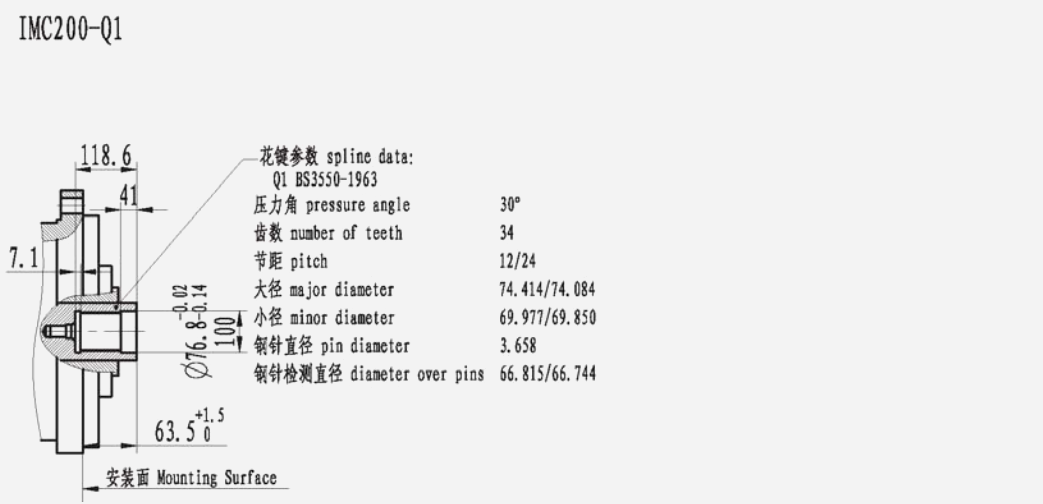

Dimensions and Mounting Data for IMC200：

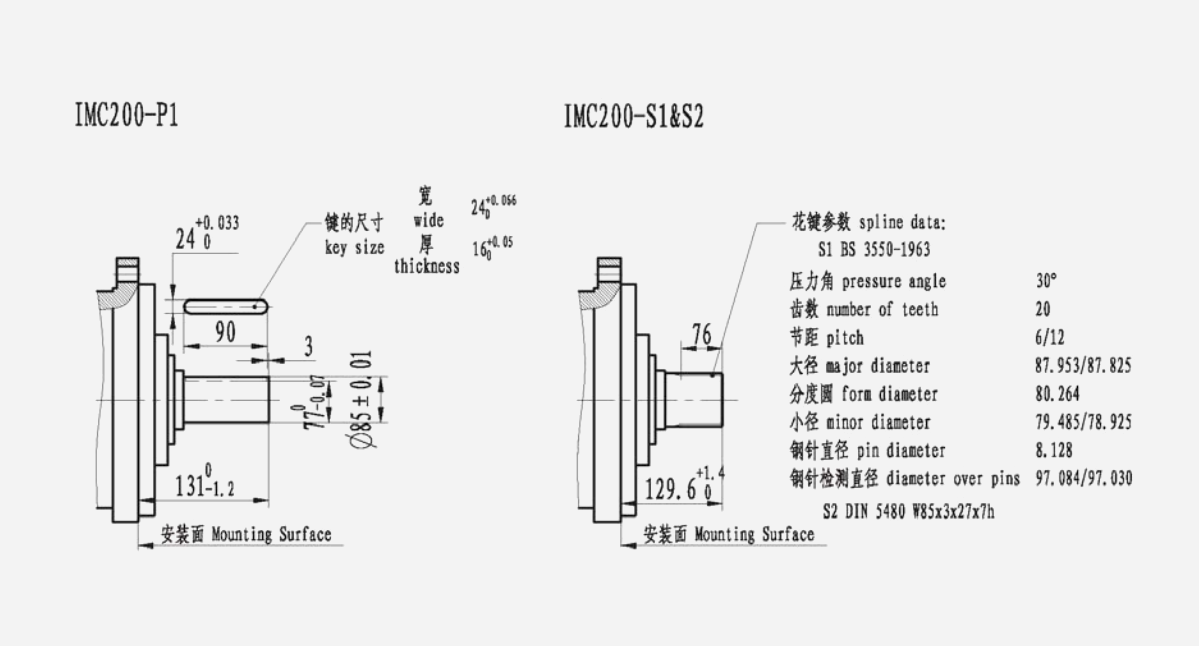

Variable Control's Mounting Data：



NOMINAL DISPLACEMENT 4600 4100 3600 3300 3000 2600 2300 1900 1600 1400 970 680 340 170
ml/r
DISPLACEMENT		 4597 4086 3632 3291 2951 2610 2270 1930 1649 1362 965 681 340 170/0
N.M/Mpa
SPECIFIC TORQUE		 657 585 514 460 419 356 310 259 210 168 108 73 24 0
r/min
MAX.CONT.SPEED		 108 120 135 145 165 180 215 240 290 315 315 315 315 900
KW
MAX, CONT.POWER		 123 115 104 97 90 83 76 68 59 48 37 25 8 0
KM
MAX.CONT.POWER		 153 149 142 136 129 122 112 102 91 81 68 47 12 0
Mpa
MAX.CONT.PRESSURE		 21 21 21 21 21 21 21 21 21 21 21 21 21 15
Mpa
MAX, TOP, PRESSURE		 25 25 25 25 25 25 25 25 25 25 25 25 25 15

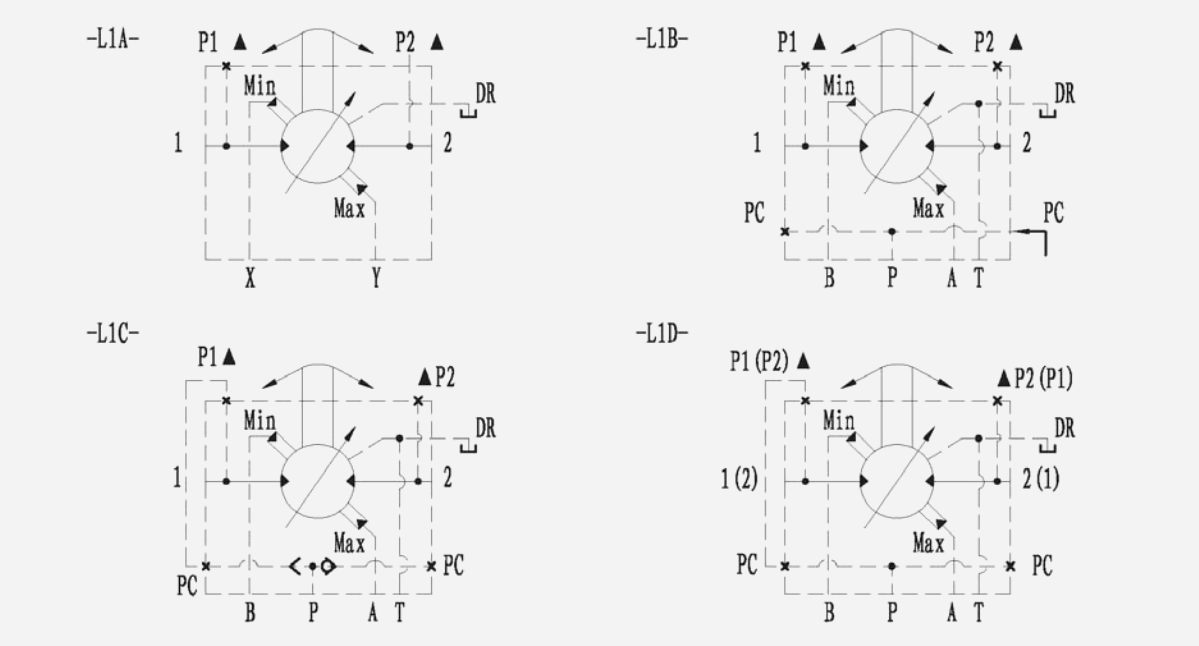

Functional Symbols：

Dimensions and Mounting Data for IMC200：

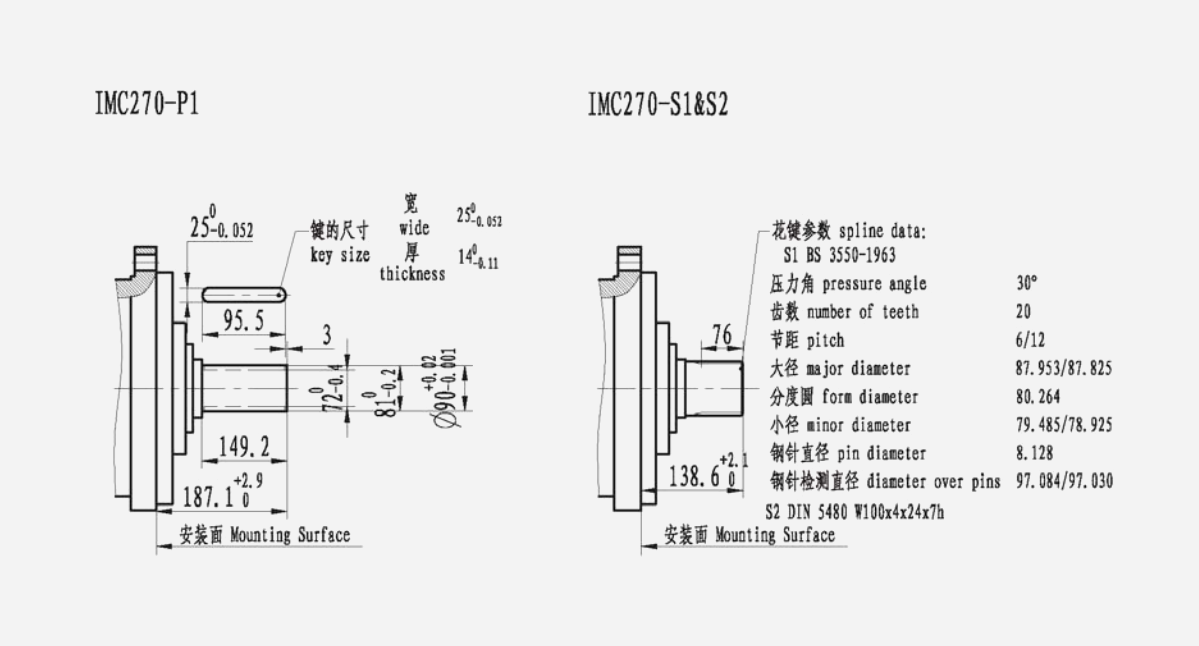

Variable Control's Mounting Data:



TYPE:IMC325
NOMINAL DISPLACEMENT 5300 5100 4900 3600 3300 3000 2600 2300 1900 1600 1500 1400
ml/r
DISPLACEMENT		 5335 5108 4937 3632 3291 2951 2610 2270 1930 1646 1532 1362
N.M/Mpa
SPECIFIC TORQUE		 763 731  706 514 460 419 356 310 259 210 196  168
r/min
MAX.CONT.SPEED		 90 105  110 135 145 165 180 215 240 290 315  315
KW
MAX.CONT, POWER		 123 123  123 104 97 90 83 76 68  59 54  48
KM
MAX.CONT.POWER		 153 153  153 142 136 129 122 112 102 91 87  81
Mpa
VAX.CONT.PRESSURE		 21 21  21 21 21 21 21 21 21 21 21  15
Mpa
MAX.TOP.PRESSURE		 25 25  25 25 25 25 25 25 25 25 25  15

Functional Symbols：

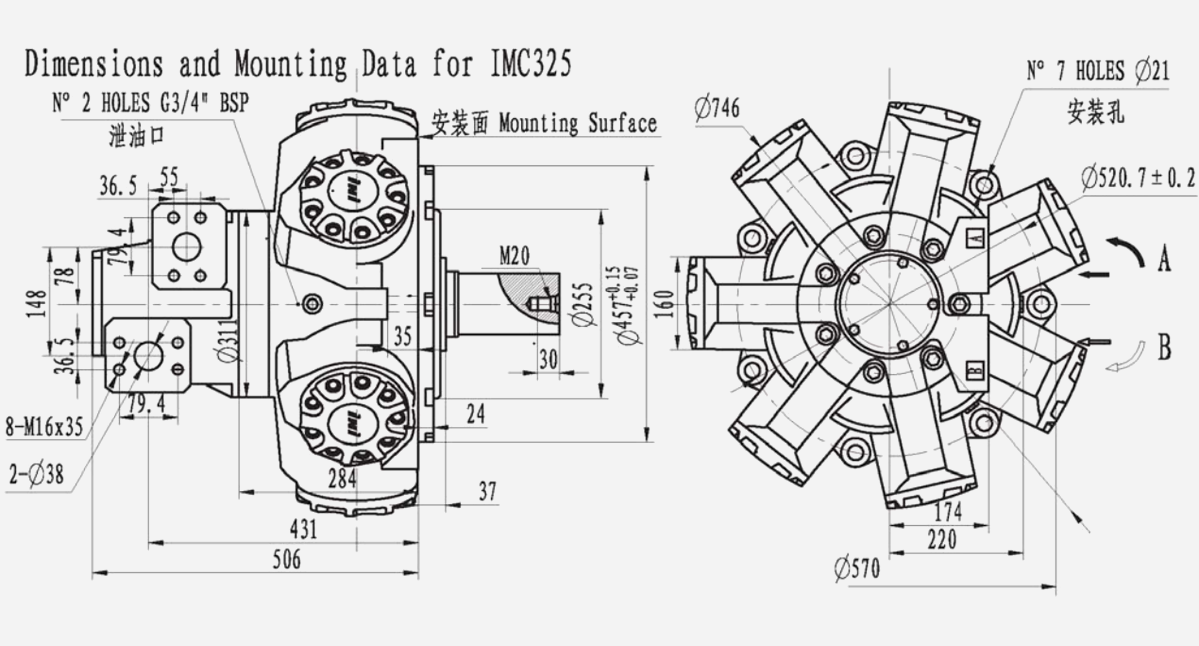

Dimensions and Mounting Data for IMC325:

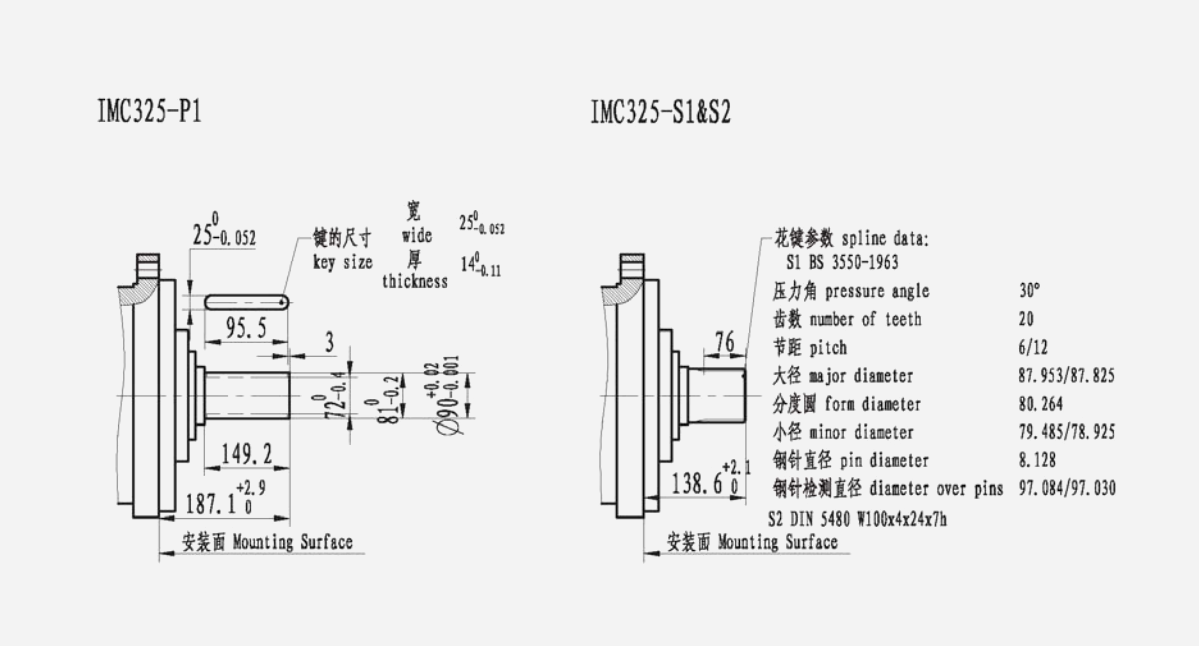

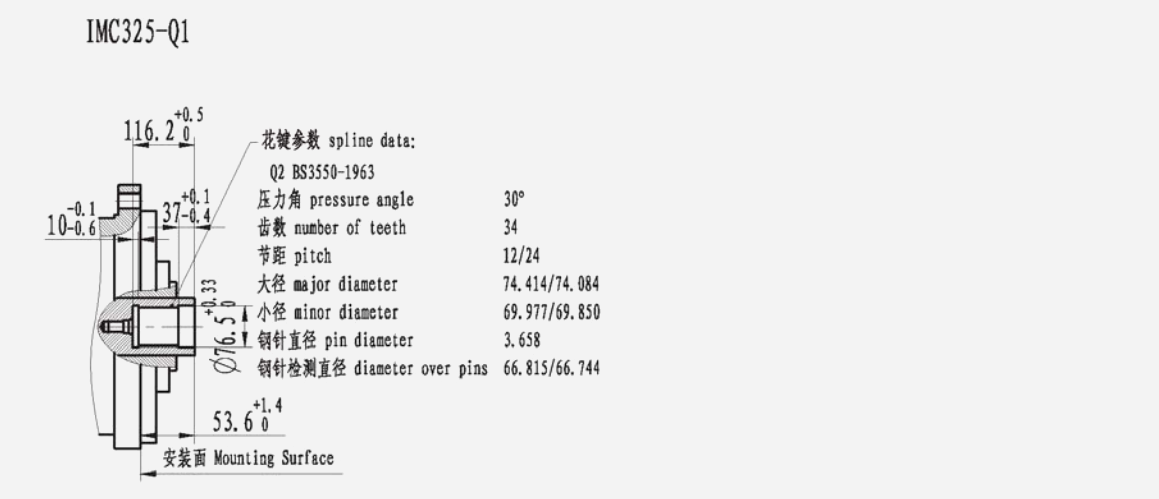

Variable Control's Mounting Data:
