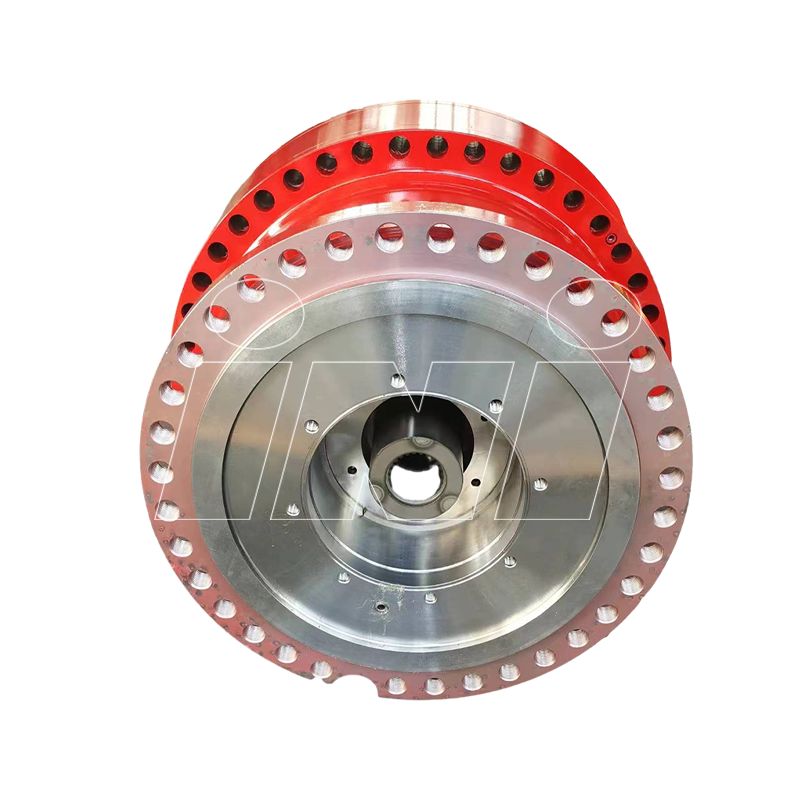

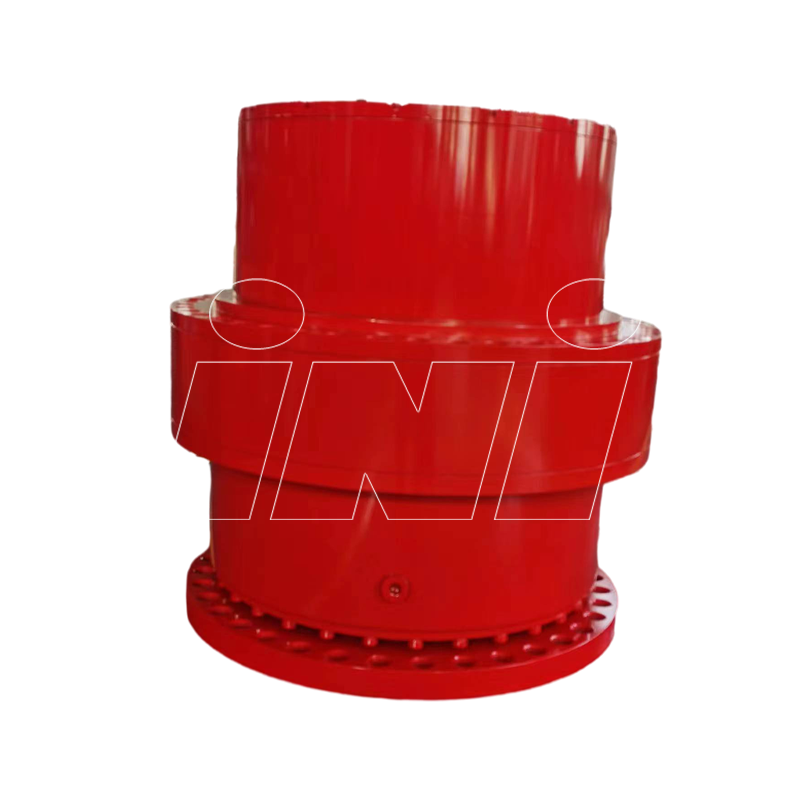

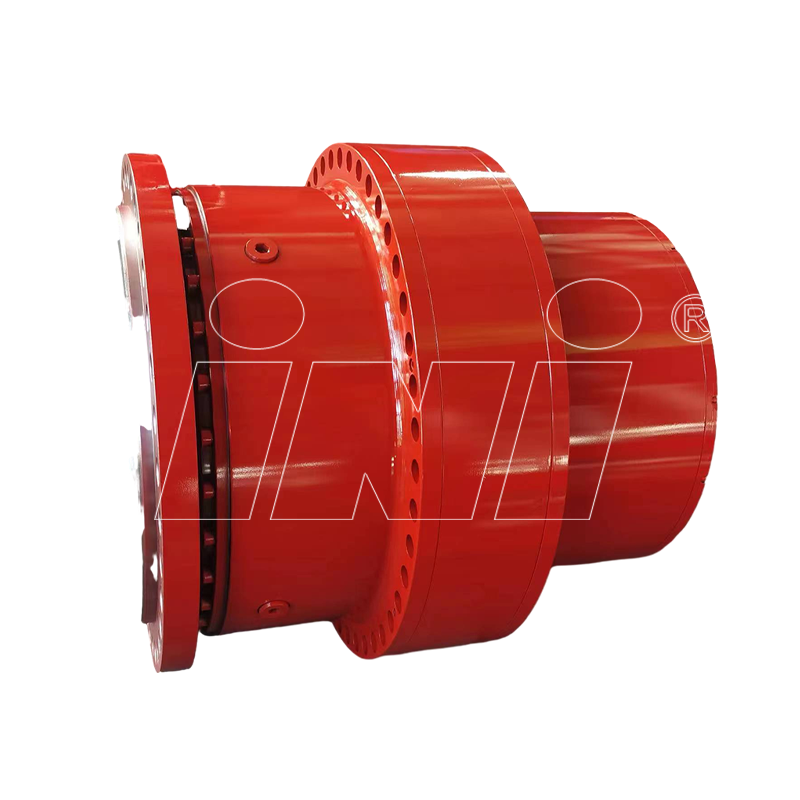

The IGC-J Series Planetary Gearbox by Axial Rotating are ideal transmission component that has proved successful in a wide range of operating conditions. Based on long years of experience and a wide spectrum of products and applications,
|
Serial code |
Output Torque |
Ratio |
Hydraulic Motor |
D1 |
D2 |
D3 |
D4 |
D5 |
L1 |
L2 |
L3 |
L4 |
|||||
|
IGC60T3 |
42500 |
87.5·95.8·106.5·120.8·140.9 170.9 |
A2FE80 |
A2FM80 A2FM80 A2FM107 A2FM125 |
INM1 INM2 INM3 |
HMB010 HMB030 HMB045 |
380h8 |
410 |
440 |
20xφ22 |
370 |
84 |
419 |
30 |
30 |
||
|
IGC80T3 |
67000 |
77.7·100·111.9·127.9·150.9 186.4 |
A2FE101 |
A2FM80 A2FM107 A2FM125 A2FM160 |
INM2 INM3 INM4 |
HMB030 HMB045 HMB060 |
440b8 |
480 |
520 |
20xφ26 |
430 |
116 |
541 |
12 |
30 |
||
|
IGC110J3 |
100000 |
96.8·115.8·129.6·148.2·174.9 |
A2FE107 |
A2FM80 A2FM107 A2FM125 A2FM160 |
INM3 INM4 |
HMB060 HMB080 HMB100 HMB125 |
470b8 |
500 |
540 |
36xφ20 |
460 |
101 |
553 |
15 |
30 |
||
|
IGC160J3 |
140000 |
80·94.6·101.3·109.2·119.1 131.5·162.8 |
A2FE160 A245180 A4FM250 A4FM500 |
A2FM200 |
INM4 INM5 INM6 |
HMB100 HMB125 HMB150 HMB200 |
545b9 |
600 |
650 |
30rφ26 |
535 |
138 |
584 |
15 |
30 |
||
|
IGC220J3 |
200000 |
89.3·96.5·105.4·116.5·121.8 146.4·189.9 |
A2FE160 A2FE180 A4FM250 A4FM500 |
A2FM25 A2FM355 A2FM500 A2FM200 A2FM250 A2FM355 A2FM500 |
INM5 INM6 INM7 |
HMB125 HMB150 |
610b9 |
680 |
735 |
24xφ33 |
610 |
85 |
587 |
23 |
45 |
||
|
IGC550J4 |
410000 |
645.45 |
A2FE160 A2FE180 A4FM250 A4FM500 |
A2FM200 A2FM250 A2FM355 A2FM500 |
A6VM160 A6VW200 A6VM250 A6VM355 |
810b8 |
850 |
900 |
36xφ33 |
798 |
463.5 |
1013.5 |
45 |
50 |
|||
Products provided by famous enterprises are deeply trusted by users.
Years Industry Experience
Factory Area
Skillful Employees
Advanced Production Line
INI Hydraulic Co., Ltd. has specialized in designing and manufacturing hydraulic winches, hydraulic motors and planetary gearboxes for more than twenty years. We are one of the professional China IGC-J Series Planetary Gearbox By Axial Rotating Manufacturers and IGC-J Series Planetary Gearbox By Axial Rotating Suppliers. Customizing to optimize customers’ ingenious equipment designs is our way to stay alive robustly in the market. Over 26 years, driven by the commitment of always innovating to satisfy customers’ needs, we have developed a wide range of product lines based on our self-developed technologies. The wide spectrum of products, each correlating intimately, contains hydraulic and electric winches, planetary gearboxes, slewing drives, transmission drives, hydraulic motors, pumps and hydraulic systems.
The reliability of our products has been proven strongly in diverse applications, including not limiting industrial machinery, construction machinery, ship & deck machinery, off-shore equipment, mining and metallurgical machinery.
Besides, our product quality has been approved by multiple worldwide renowned certificate bodies. The certifications, that our products have obtained, include EC-Type Examination Certificate, BV MODE, DNV GL Certificate, EC Attestation of Conformity, Certificate of Type Approval for Marine Product and Lloyd’s Register Quality Assurance. So far, besides China, our domestic market, we have widely exported our products to the United States, Germany, the Netherlands, Australia, Russia, Turkey, Singapore, Japan, South Korea, Malaysia, Vietnam, India and Iran. Our logistics and after-sales services cover the whole world promptly and reliably for our customers’ deep interests.
Our products have obtained, include EC-Type Examination Certificate, BV, MODE, DNV, GL Certificate, EC Attestation of Conformity, Certificate of Type Approval for Marine Product and Lloyd’s Register Quality Assurance.
