IGC Series Planetary Gearbox By Casing Rotating（Can Replace Rexrtoh Gear Box）

The IGC Series Planetary Gearbox by Casing Rotating consists of a planetary gearbox and wet-type multi-disc brake. Advanced design experience and modern fabrication processes warrant outstanding load-carrying capacity and operational safety. The drives feature high total efficiency, compact, and module design. The drives can be fitted with various hydraulic motors according to customer requirements. The IGC-T series is used for track walking and can be directly connected to wheels or tracks, it can also be used in driving devices such as tunneling machines and milling machines. The IGC-W series is used for winch mechanisms and can be directly installed inside the drum to save space. The IGC-L series is used for wheel walking and can achieve manual clutch and variable speed drive. The drives described in this catalog are constantly reviewed standard type. Other design variants with different ratios, dimensions, and power characteristics are available if so requested for specific applications. The drives have been widely applied in crawler rotary drill rigs, trucks and tracked cranes, milling machine walking and power head drive, coal mining machine and power head drive, road rollers, railway vehicles, high-altitude operation truck wheel drive, self-propelled drilling machine track drive, and port and container crane driving mechanisms and winch mechanisms.
The drives not only widely have been used by domestic customers such as SANY, XCMG, and ZOOMLION, but also have been exported to  Southeast  Asia, the Middle  East, India, South  Korea, the Netherlands, Germany Russia, and so on.

Contact Us Download WhatsApp

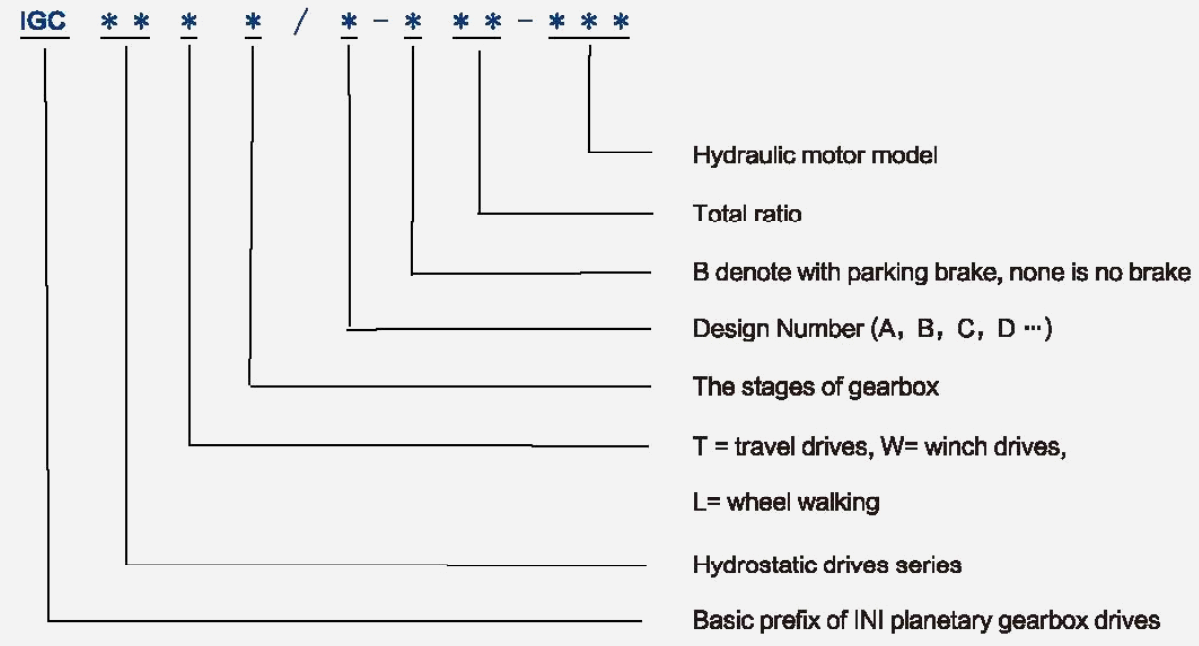

Model Options:Options Example:
IGC36T3-B79.4-A2FE80/6.1WVAL10 represents that the series drive is 36 with a maximum output torque of 36kNm, for travel drives, design number B, three stages planetary gearbox with a total ratio of 79.4 and a multi-disc parking brake, and could be fitted with axial piston hydraulic motor of A2FE80/6.1WVAL10.

TYPE: IGC5

Serial code Output Torque Ratio Hydraulic Motor Max Iopot Speed Braking Torque Hrake
Press		 Weight

IGC5T2

5000

 53.7

A2F16

A2F28

A2P32

4000

125

1.5-5

35
TYPE: IGC8
Serial code Output Torque Ratio Hydraulic Motor Max Iopot Speed Braking Torque Hrake
Press		 Weight

IGC8T2

8000

15.7·17.7·20.5·24.5·30.9

A2F32

A2F45

A2F56

A2F63

4000

 390

 1.5-5

42
TYPE: IGC13
Serial code Output Torque Ratio Hydraulic Motor Max Iopot Speed Braking Torque Hrake
Press		 Weight

IGC13T2

13000

24.7·26.4·32.1 ·37.6·45.4·54

A2FE45

A2FE56

A2FB63

A6YE55

A10VB45

A10VB63

4000

560

1.5-5

86

IGC13W2

9500
TYPE: IGC24
Serial code Output Torque Ratio Hydraulic Motor Max Iopot Speed Braking Torque Hrake
Press		 Weight

IGC24T3

24000

 72.6·90.1·102.6·120.5 ·137.2

A2FE45

A2FE56

A2FB63

A6YE55

A10VE45

A10VE63

4000

 560

 1.5-5

 105

IGC24W3

19000
TYPE: IGC26
Serial code Output Torque Ratio Hydraulic Motor Max Iopot Speed Braking Torque Hrake
Press		 Weight

IGC26T2

26000

17.37·23·27.93 ·41.1·44·48.1

A2FE56

A2FE63

A2FB80

A2FE90

A6YE55

A6YE80

 4000

 790

 1.5-5

150

IGC26W2

18000
TYPE: IGC60
Serial code Output Torque Ratio Hydraulic Motor Max Iopot Speed Braking Torque Hrake
Press		 Weight

IGC60T3

60000

79.8·86.5·94.8·105 119.8·139.9·169.9

A2FE80

A2FE90

A2FB107

A2FR125

A6YE80

A6YE107

4000

780

1.3-5

242

IGC5OW3

42500
TYPE: IGC130
Serial code Output Torque Ratio Hydraulic Motor Max Iopot Speed Braking Torque Hrake
Press		 Weight

IGC130T3

130000

95.8·114.8·128.6·147.2·173.9·215

A2FR107

A2FE125

A2F3160

A2FB180

A6VB107

A6VB160

4000

910

1.3-5

430

TYPE: IGC180
Serial code Output Torque Ratio Hydraulic Motor Max Iopot Speed Braking Torque Hrake
Press		 Weight

 IGC180T3

 180000

182·227·151

A2FB107

A2FE125

A2F3160

A2FB180



A6VE107

A6VB160

 4000

 1020

 1.8-5

 685

IGC180W3

150000

IGC180L3

180000

75

A6VM250
HMV280

4000

1500

1.8-5

670

TYPE: IGC220
Serial code Output Torque Ratio Hydraulic Motor Max Iopot Speed Braking Torque Hrake
Press		 Weight

IGC220T3

220000

97.7·124·145.4

·167·215·246.1

·287·293

A2FR107

A2FE125

A2FB160

A2FB180

A6VE107

A6VB160

A6VM200

A6YM355

4000

1400

1.8-5

850

IGC220W3

200000

TYPE: IGC280
Serial code Output Torque Ratio Hydraulic Motor Max Iopot Speed Braking Torque Hrake
Press		 Weight

 IGC280W3

 230000

 287

A2FB107

A2PB125

A2PB160

A2FB180

A6VE107

A6VB160

A6YM200

A6PM355

 4000

 1400

 1.8-5

 900

TYPE: IGC330
Serial code Output Torque Ratio Hydraulic Motor Max Iopot Speed Braking Torque Hrake
Press		 Weight

IGC330T3

330000

168.9·209.9 ·

252·302.4

A2FE160

A2FE180

A2FE250

A2FE35S

A6TE160

A6TE250

A6TJ200

A6YM355

 4000

 2500

 1.8-5

 1285

IGC330W3

275000

TYPE: IGC450
Serial code Output Torque Ratio Hydraulic Motor Max Iopot Speed Braking Torque Hrake
Press		 Weight

IGC450T4

450000

320.3·347.1·421.7

A2FE180

A2FE250

A2FE355

A2FM500

A6VE160

A6VE250

A6VMR200

A6VM355

 4000

 1450

 1,8-5

 1305

TYPE: IGC550
Serial code Output Torque Ratio Hydraulic Motor Max Iopot Speed Braking Torque Hrake
Press		 Weight

IGC550W3

460000

102.1·122.9·185.2-226.7

A2FE180

A2FE250

A2FE355

A2FM250

A2FM500

A6VE250

A6VM200

A6VM355

A4VM355

A4VM500

4000

3200

1,8-5

2235

TYPE: IGC880

Serial code Output Torque Ratio Hydraulic Motor Max Iopot Speed Braking Torque Hrake
Press		 Weight

IGC880T3

880000

127.1·179.6·236.2·293.7

A2FE180

A2FE250

A2FE355

A2FM250

A2FM500

A6VE250

A6VM200

A6VM355

A4VM355

A4VM500

4000

3200

1,8-5

4350

IGC880W3

750000
