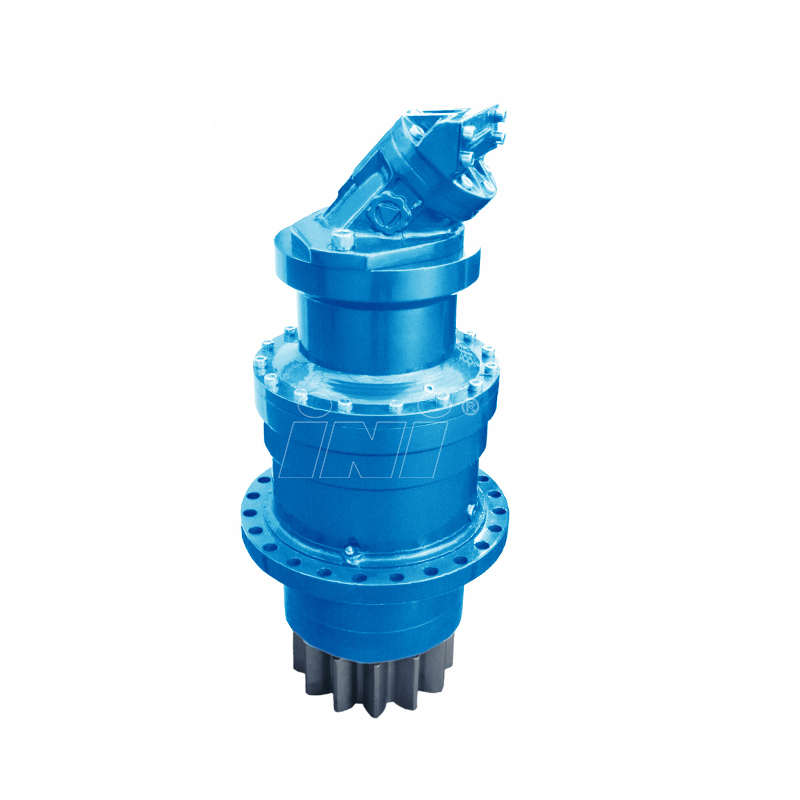

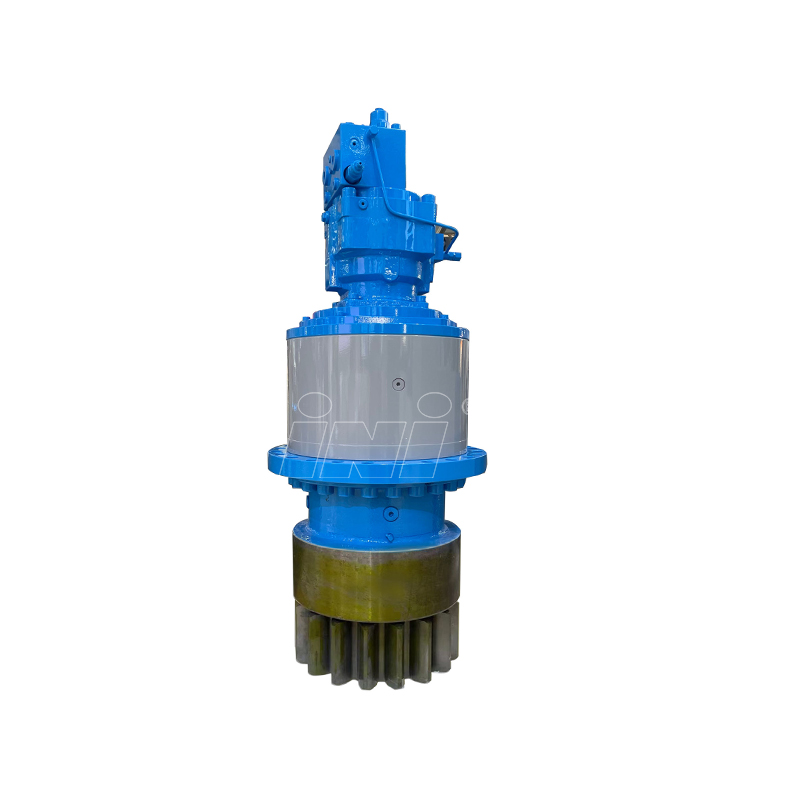

The IGH Series Hydraulic Slewing Drive is the ideal driving component for wheeled or crawler excavators, rotary drill rigs, crawler cranes and vehicle cranes, marine cranes, and other mobile equipment. The series has proven its worth under arduous application conditions in more unfavorable operating environments.
The series features compact size, space-saving, high efficiency, long service life, integrated multiple-disk holding brake, and simple mounting and maintenance. Module design optimized gear manufacture and high-quality fabrication processes ensure good load-carrying ability and outstanding operational reliability.
The series described in this catalog are of the standard type. Other design variants with different ratios, dimensions, and

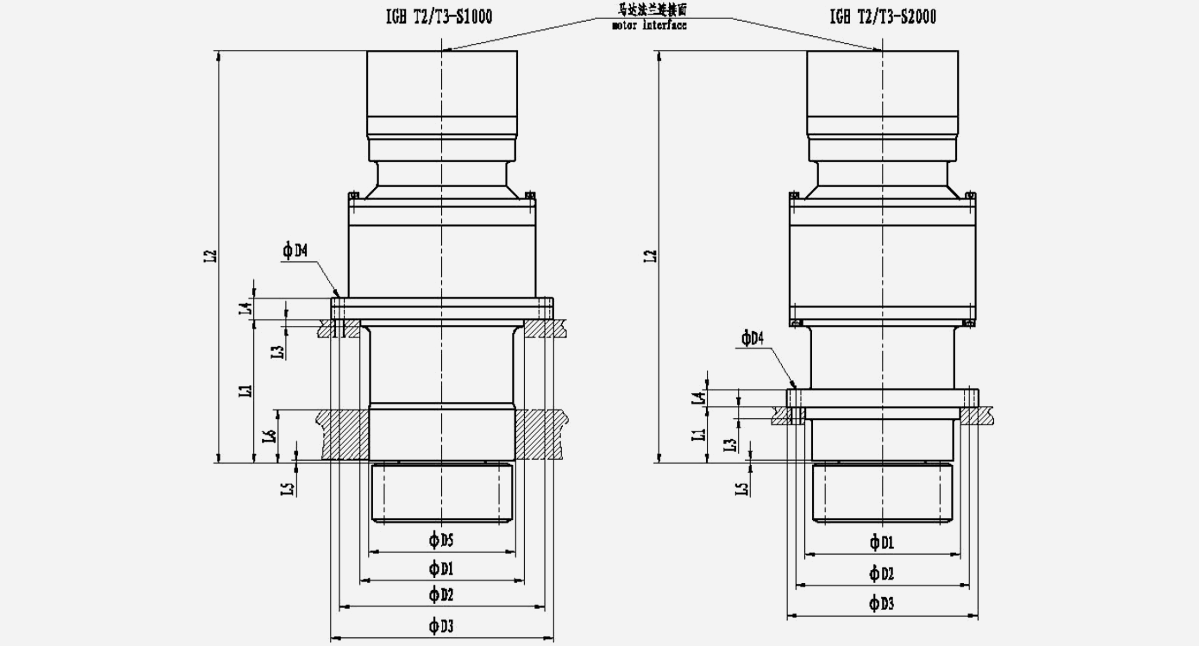

Options Example:
|
Serial code |
Output Torque |
Ratio |
Hydraulic Motor |
Weight kg |
D1 |
D2 |
D3 |
D4 |
D5 |
L1 |
L2 |
L3 |
L4 |
L5 |
L6 |
|||||
|
IGH17T2-S1000 IGH17T2-S2000 |
12700 |
24.7·27.4·33.1·38.6·46.4·55 |
A2FM45 |
A2FE45 |
H1CR45 |
HMF28 |
130 |
255f7 |
290 |
320 |
16xφ18 |
230f7 |
200 |
≈517 |
8 |
38 |
5 |
60 |
||
|
230f7 |
258 |
282 |
20xφ13.5 |
- |
80 |
≈517 |
60 |
38 |
5 |
- |
||||||||||
|
IGH17T3-S1000 IGH17T3-S2000 |
12700 |
65.2·78.9·89.2·103.6 |
150 |
255f7 |
290 |
320 |
16xφ18 |
230f7 |
200 |
≈517 |
8 |
38 |
5 |
60 |
||||||
|
230f7 |
258 |
282 |
20xφ13.5 |
- |
80 |
≈517 |
60 |
38 |
5 |
- |
||||||||||
|
IGH24T3-S1000 |
17500 |
91.1·103.6·121,5·138.2 |
150 |
265h8 |
315 |
355 |
20φ17.5 |
230h8 |
245 |
≈598 |
15 |
34 |
8 |
75 |
||||||
|
IGH36T2-S1000 IGH36T2-S2000 |
28500 |
18.37·24·28.93·45·49.1 |
A2FM55 |
A2FE56 |
E1CR55 |
HMF55 |
210 |
280h8 |
350 |
380 |
20xφ18 |
250h8 |
245 |
≈670 |
12 |
36 |
5 |
90 |
||
|
265h8 |
296 |
326 |
20xφ18 |
|
95 |
≈670 |
20 |
30 |
5 |
- |
||||||||||
|
IGH36T3-S1000 IGH36T3-S2000/1 IGH3613-S2000/2 |
28500 |
68·80.4·89.2·101·117.6 131.4·204 |
235 |
280h8 |
350 |
380 |
20xφ18 |
250h8 |
245 |
≈670 |
12 |
36 |
5 |
90 |
||||||
|
265h8 |
296 |
326 |
20xφ18 |
- |
95 |
≈670 |
20 |
30 |
5 |
- |
||||||||||
|
360h8 |
400 |
440 |
20xφ18 |
- |
112 |
≈670 |
30 |
30 |
12 |
- |
||||||||||
|
IGH60T3-S1000/1 IGH60T3-S1000/2 IGH60T3-S2000 |
48500 |
80.8·87,5·95,8·106.5·120,8 · 140.9·170.9 |
500 |
400h8 |
490 |
542 |
16xφ22 |
325h8 |
279 |
≈763 |
25 |
40 |
19 |
114 |
||||||
|
300h8 |
370 |
410 |
20xφ22 |
- |
96 |
≈775 |
78 |
30 |
18 |
- |
||||||||||
|
400h8 |
490 |
542 |
16xφ22 |
325h8 |
450 |
≈729 |
25 |
40 |
19 |
114 |
||||||||||
|
IGH80T3-S1000/1 IGH80T3-S1000/2 IGH80T3-S2000 |
68300 |
77.7·100·111.9·127.9·150.9 186.4·253.8 |
A2FM80 A2FM107 A2FM125 |
A2FE80 A2FE90 A2FE107 |
H1CR75 |
HMF75 |
620 |
440f7 |
480 |
515 |
24xφ26 |
370h7 |
314 |
≈885 |
14 |
40 |
21 |
162 |
||
|
635 |
490h8 |
535 |
580 |
24xφ26 |
440h8 |
491 |
≈930 |
25 |
27 |
18 |
168 |
|||||||||
|
620 |
370h8 |
480 |
530 |
24xφ22 |
- |
100 |
≈885 |
88 |
55 |
12 |
- |
|||||||||
|
IGH110T3-S1000 IGH110T3-S2000 |
93300 |
96.8·115.8·129.6·148.2·174.9 216·312 |
A2FM125 |
A2FE107 |
HMF135 |
645 |
475f7 |
520 |
570 |
24xφ26 |
440h7 |
449 |
≈950 |
20 |
40 |
20 |
160 |
|||
|
490f7 |
544 |
594 |
24xφ26 |
- |
170 |
≈928 |
20 |
40 |
15 |
- |
||||||||||
|
IGH160T3-81000 |
136500 |
183·228·252 |
1025 |
545b9 |
600 |
650 |
30xφ26 |
425h9 |
314 |
≈986 |
15 |
40 |
14 |
184 |
||||||
|
IGH220T3-S1000 |
213000 |
98.7·146.4·189.9·247·294 |
1285 |
620b9 |
670 |
710 |
26xφ26 |
460h9 |
588 |
≈1301 |
20 |
50 |
10 |
160 |
||||||
